Wheelchair Platform Lift For Home House

Wheelchair Platform Lift For Home House
Wheelchair Platform Lift For Home House Wheelchair Platform Lift For Home House Wheelchair Platform Lift For Home House Wheelchair Platform Lift For Home House

Large Image :  Wheelchair Platform Lift For Home House

Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJG0.25-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: US1980- USD4800 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 30 days
Supply Ability: 2600units per year

Wheelchair Platform Lift For Home House

Description
Usage: Portable Handicap Wheelchair Lift Electric Vertical Residential Wheelchair Lifts For Home Warranty: 24 Months
Rated Loading Capacity: 250kg Min. Lifting Height: 70mm
Max. Lifting Height: 3000mm Table Size: 1430mm(L) * 900mm(W)
Control: Calling Box And Remote Controller Material: Aluminum Alloy With Powder Coating
Lift Drive: Hydraulic Lift Mechanism: Lift Chain
OEM: Available Loading Capacity: 250kgs
Lifting Height: 2.5m Platform Size: 1200mm X 1000mm
High Light:

patient lifting hoists

,

handicap lift equipment

,

250kg Loading Wheelchair Platform Lift

250kgs 2.5m Wheelchair Lift Electric Vertical Wheelchair Lifts For Home House:


Application:


The Electric Vertical Residential Wheelchair Lift ​ provides convenient, reliable and safe access between different levels, supporting a wide selection of application.
It is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0 - 12.0m working range, 250-500kg carrying capacity. Ideal for indoor and outdoor application.




Technical Parameters:


Platform size

1200mm(L)* 1000mm(W)

Dimension

1450mm(L)*1000mm(W)* Travel height +700-1100 mm(H)

Max Platform Height

1000mm to 12000mm

Min Platform height

70mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG~500KG

Control voltage

24V/DC

Power Output

2.2KW

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic  or screw

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Plastic electrostatic spraying

Painting

Plastic electrostatic spraying

Guard panel & drive cabinet
(framework)

Aluminum Alloy / 304 stainless steel


Operation Panel

Polished aluminum Alloy

Safety Wane Working Range

75°

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation


Non-pit installation, directly fixed to concrete floor
(the concrete floor below the platform shall not be
lower than the ground)

Control Device


Calling box (installed on the wall nearby) and remote
controller(Extra optional)

Emergency Stop


The lifting and lowering process can be stopped immediately
by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately
the safety edge meets obstacles during
operation .

Emergency lowering

The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.

Auto-flap

Turn up after lifting

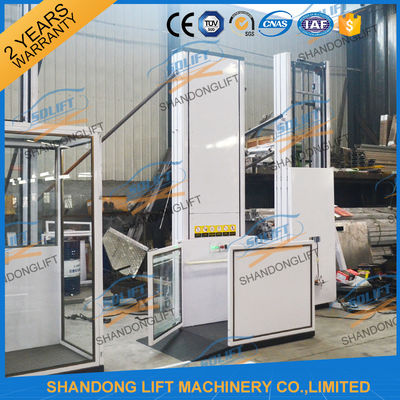

Wheelchair Lift Pics:

Wheelchair Platform Lift For Home House 0

Wheelchair Platform Lift For Home House 1

Wheelchair Platform Lift For Home House 2


Our services:

1) We can design the Electric Wheelchair lift as per your requirement.
2) The Electric Wheelchair Wheelchair lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
