Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People

China Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier
Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People supplier

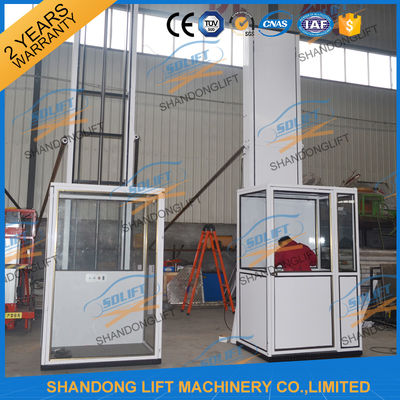

Large Image :  Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJGL0.25-3

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US3680- USD7800 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 20 working days
Supply Ability: 1200units per year
Contact Now
Detailed Product Description
Application: Hydraulic Residential Elevators Wheelchair Lift Used For Old People In And Out: 90° Or 180° In And Out
Material: Stainless Steel Or Aluminum Alloy With Powder Coating Drive System: Hydraulic
Safety Sensor: Stopped Immediately If The Safety Edge Meets Obstacles When Going Down Auto-flap Ramp: Turn Up To Max 75°and Prevent The Wheelchair Outside
Control: Calling Box And Remote Controller Safety Interlock: Lock The Platform When It Is Out Of Control
Safety Device: Explosion Proof Lock Valve

Electric Hydraulic Residential Elevators Wheelchair Lift Used For Old People



Application:



The Residential Elevators Wheelchair Lift can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.

Customized product can be done as your request:

Lift height: 1m - 12m

Load capacity: 250kg - 500kg

Material: stainless steel or aluminum alloy with Powder coating



Technical Parameters:



Specification:
Model SJGL0.25-3
Load capacity 250kg
Max. Platform Height 3000mm
Platform size 1450mm(L)* 900mm(W)
Dimension 1450mm(L)*1200mm(W)*3900mm(H)
Min Platform height 80mm
In and out 180°in and out
Self weight 650kg
Material Stainless steel or aluminum alloy with Powder coating
Power Input 220V/50HZ/1PH/2.2KW
Convenient operation design:
Drive System Hydraulic
Control Mode Inching Switch
Drive Control Self-resetting system
Calling device Calling box (Located at ground and upstairs), remote controller (optional)
Column switch Two column switches, one is on the ground floor, one on the first floor
Working temperature From -10°~60°C
Overload Protection over current relay
Automatic ramp 75°ramp Range
Working Condition Both indoors and outdoors
Installation Non-pit installation, directly fixed to concrete floor
Safety Device:
Safety Interlock: Lock the platform when it is out of control
Emergency Stop The lift can be stopped immediately in case of any emergency
Emergency Lowering The platform can be lowered by manual down button in case of power failure
Safety Sensor The lift will be stopped immediately if the safety edge meets obstacles when going down.
Auto-flap ramp Turn up to max 75°and prevent the wheelchair outside



Production pictures:



Through Floor Stair Chair Lifts Handicap Lifts for Homes Through Floor Stair Chair Lifts Handicap Lifts for Homes



Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People Electric Wheelchair Elevator Lift / Residential Hydraulic Elevator For Old People



Installation sites:



Through Floor Stair Chair Lifts Handicap Lifts for Homes Through Floor Stair Chair Lifts Handicap Lifts for Homes



Our service:



1) We can design the Residential Elevators Wheelchair Lift as per your requirement.
2) The Residential Elevators Wheelchair Liftwill be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
