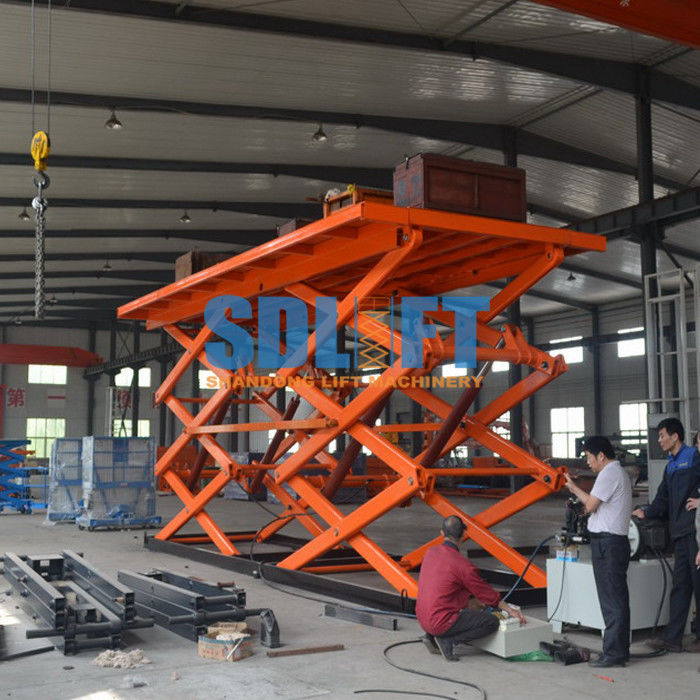

12T 6M Double Scissor Lift Table

12T 6M Double Scissor Lift Table
12T 6M Double Scissor Lift Table 12T 6M Double Scissor Lift Table 12T 6M Double Scissor Lift Table 12T 6M Double Scissor Lift Table 12T 6M Double Scissor Lift Table 12T 6M Double Scissor Lift Table

Large Image :  12T 6M Double Scissor Lift Table

Product Details:
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG12-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD7800- USD21800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days after deposit
Supply Ability: 1200units per year

12T 6M Double Scissor Lift Table

Description
Application: Double Scissor Lift Table Hydraulic Goods Lift Platform Load Capacity: 12000kgs
Lift Height: 6000mm Work Platformr: Anti-skid Checkered Plate
Safe Device: Explosion-Proof Lock Valve Control Mode: Control Box, Upper Control, 2 Remote
High Light:

lifting platforms equipment

,

Mobile Aerial Work Platform

Double Scissor Lift Table Hydraulic goods lift platform with CE



· Parameters:



Load capacity: 12000kg

Lift height: 6000mm

Platform size: 5800mm x 2800mm

Power: 380v/50hz/3ph/7.5kw



· Configuration:



1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/7.5Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box, 1 hand controller, 2 remotes



· Products in our factory:



12T 6M Double Scissor Lift Table 012T 6M Double Scissor Lift Table 1

12T 6M Double Scissor Lift Table 212T 6M Double Scissor Lift Table 3



· The frequent models we supplied for our clients:





MODEL



LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG0.3-2 0.3T 1.5m x 1.5m 2m 400mm 220V, 240V, 380V or 400V
SJG0.5-3 0.5T 2m x 1.8m 3m 500mm 220V, 240V, 380V or 400V
SJG1-4.5 1T 2.1m x 1.5m 4.5m 650mm 220V, 240V, 380V or 400V
SJG1.5-4 1.5T 2.2m x 1.6m 4m 600mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V



The Double Scissor Lift Table Hydraulic goods lift platform can be customized as your detailed size.





· Service:

1) All double scissor lift table must be 1.2 times tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.



· CE Certificate:



12T 6M Double Scissor Lift Table 4



· Package and Loading into container:



12T 6M Double Scissor Lift Table 5



12T 6M Double Scissor Lift Table 6



12T 6M Double Scissor Lift Table 7
