6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System

China 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier
6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System supplier

Large Image :  6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System

Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG6-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD7800- USD15800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1200 units per year
Contact Now
Detailed Product Description
Usage: 2 Level Hydraulic Garage Parking Car Lift Control Method: Buttons / Remote Control
Lifting Speed: 3000mm/min Lift Capacity: 6000kgs
Lift Height: 3000mm Guarantee: 24 Months

2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System



INTRODUCTION



High precision hydraulic parking car lift with stable lifting, simple operation, large load capacity and long service life, it is used in 4S stores, home garage and large parking lot for vehicle lifting and parking, it can also be used as a cargo lift.



Parameters:



1) Load capacity: 3000kgs (lower platform)
                          3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (lower platform)
                         5.2m x 2.6m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Power: 380v/50hz/3ph/5.5kw
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001


Model list



Model load capacity Platform size Lift height Pit depth Power
SJG2.5-3 2.5T 5.2m×2.6m 3m 750mm 220v, 240v,380v or 400v
SJG2-6.5 2T 5.2m×2.8m 6.5m 800mm 220v, 240v,380v or 400v
SJG2.5-3.5 2.5T 5.2m×2.6m 3.5m 800mm 220v, 240v,380v or 400v
SJG2.5-5 2.5T 5.6m×3m 5m 800mm 220v, 240v,380v or 400v
SJG3-2.5 3T 5m×2.3m 2.5m 750mm 220v, 240v,380v or 400v
SJG3-3 3T 5.2m×2.6m 3m 800mm 220v, 240v,380v or 400v
SJG3-3.5 3T 5.6m×2.7m 3.5m 800mm 220v, 240v,380v or 400v
SJG5-10 5T 4.5m×2.5m 10m 1150mm 220v, 240v,380v or 400v
SJG8-2.5 8T 6.5m×4.5m 2.5m 850mm 220v, 240v,380v or 400v
SJG12-3 12T 5.5m×2.8m 3m 950mm 220v, 240v,380v or 400v
SJG15-4.5 15T 8m×2.2m 4.5m 1150mm 220v, 240v,380v or 400v
SJG20-5 20T 6m×3m 5m 1200mm 220v, 240v,380v or 400v



Advantages:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps Hydraulic parking Car Lifts to stop at accurate position.

3) Electricity leakage protection device is equipped on, all electric components are CE certified.

4) All the Hydraulic parking Car Lifts are passed 1.2 times loading test before leaving factory.

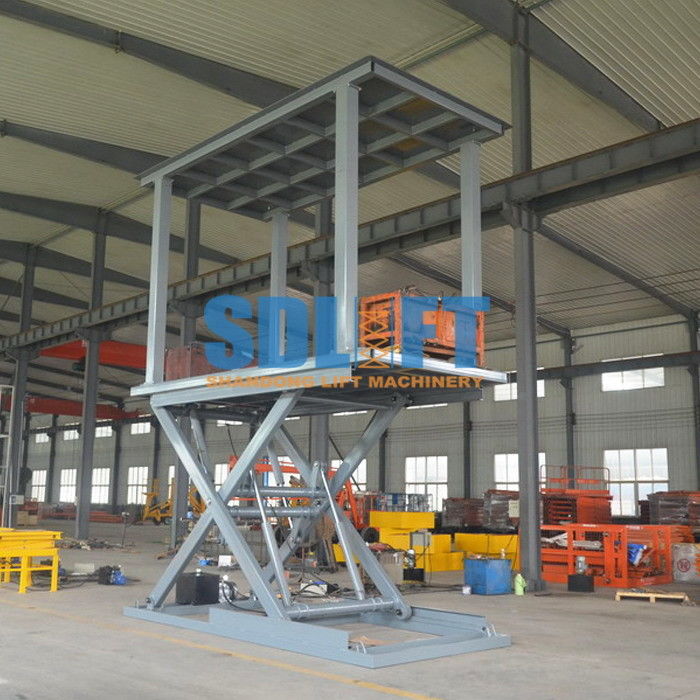

Production pictures:



6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System



6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System 6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System


CE Certificate:


6T 3M 2 Level Hydraulic Garage Parking Car Lift Mechanical Parking System



Our service:



1) We can design the Hydraulic parking Car Lifts as per your requirement.
2) The Hydraulic parking Car Lifts will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
