6m Powder Coating Wheelchair Platform Lift Explosion Proof

6m Powder Coating Wheelchair Platform Lift Explosion Proof
6m Powder Coating Wheelchair Platform Lift Explosion Proof
6m Powder Coating Wheelchair Platform Lift Explosion Proof 6m Powder Coating Wheelchair Platform Lift Explosion Proof 6m Powder Coating Wheelchair Platform Lift Explosion Proof 6m Powder Coating Wheelchair Platform Lift Explosion Proof 6m Powder Coating Wheelchair Platform Lift Explosion Proof

Large Image :  6m Powder Coating Wheelchair Platform Lift Explosion Proof

Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJGL0.25-6
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: US5800- USD10800 / UNIT
Packaging Details: wooden package
Delivery Time: 30 days after deposit
Supply Ability: 1200units per year

6m Powder Coating Wheelchair Platform Lift Explosion Proof

Description
Application: Disabled Vertical Platform Wheelchair Lift Safety Device: Explosion-Proof Lock Valve
Load Weight: 250kg Lifting Height: 6m
Surface Treatment: Aluminum Profile Powder Coating Certificate: CE, ISO9001
High Light:

Explosion Proof Wheelchair Platform Lift

,

Powder Coating Wheelchair Platform Lift

,

6m Wheelchair Platform Lift

6m Powder Coating Aluminum Wheelchair Lift Profile Person Elevator​:



·The disabled vertical platform wheelchair lift can be used to lift wheelchair or people from one floor to another, it allows user to move freely within a multi-floored building . Customized vertical wheelchair lift can be done as follows:

·Load capacity: 250kg - 350kg

·Lift height: 1m - 12m

·Platform size: as customized

·Power: 380v/3ph or 220v/1ph, or customized as your local power supply



Technical Parameters:



Platform size 1400mm(L)* 1200mm(W)
Dimension 1400mm(L)*1450mm(W)* Travel height +700-1100 mm(H)
Max Platform Height 1000mm to 10000mm
Min Platform height 80mm
Configuration Open through or front and side entrances
Speed 60mm/s
Load capacity 250KG~350KG
Control voltage 24V/DC
Power Output 2.2KW
Power Input 220V/50HZ/25A (or customized for local power supply)
Drive System Hydraulic
Control Mode Inching Switch or Automatic or remote
Drive Control Self-resetting system
Overload Protection Over current relay
Material of Platform Plastic electrostatic spraying
Painting Plastic electrostatic spraying
Guard panel & drive cabinet
(framework)
Aluminum Alloy / 304 stainless steel

Operation Panel Polished aluminum Alloy
Safety Wane Working Range 75°
Working Condition Both indoors and outdoors
Working temperature From -10°~60°C
Installation

Non-pit installation, directly fixed to concrete floor
(the concrete floor below the platform shall not be
lower than the ground)
Control Device

Calling box (installed on the wall nearby) and remote
controller(Extra optional)
Emergency Stop

The lifting and lowering process can be stopped immediately
by pressing the emergency button.
Safety device Safety Interlock Lock the platform when it is out of control
Safety Sensor The operation must be stopped immediately
the safety edge meets obstacles during
operation .
Emergency lowering The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.
Auto-flap Turn up after lifting



Sample model list:



Model No. Lifting height Platform size Load capacity Total dimention Self weight
SJGL0.25-1 1000mm 1430*900mm 250kg 1900*1430*1200mm 350kg
SJGL0.25-2 2000mm 1430*900mm 250kg 2900*1430*1200mm 550kg
SJGL0.25-3 3000mm 1430*900mm 250kg 3900*1430*1200mm 780kg
SJGL0.25-3.5 3500mm 1430*900mm 250kg 4400*1430*1200mm 850kg
SJGL0.25-4 4000mm 1430*900mm 250kg 4900*1430*1200mm 880kg
SJGL0.25-4.5 4500mm 1430*900mm 250kg 5400*1430*1200mm 950kg
SJGL0.25-5 5000mm 1430*900mm 250kg 5900*1430*1200mm 1000kg
SJGL0.25-5.5 5500mm 1430*900mm 250kg 6400*1430*1200mm 1050kg
SJGL0.25-6 6000mm 1430*900mm 250kg 6900*1430*1200mm 1100kg

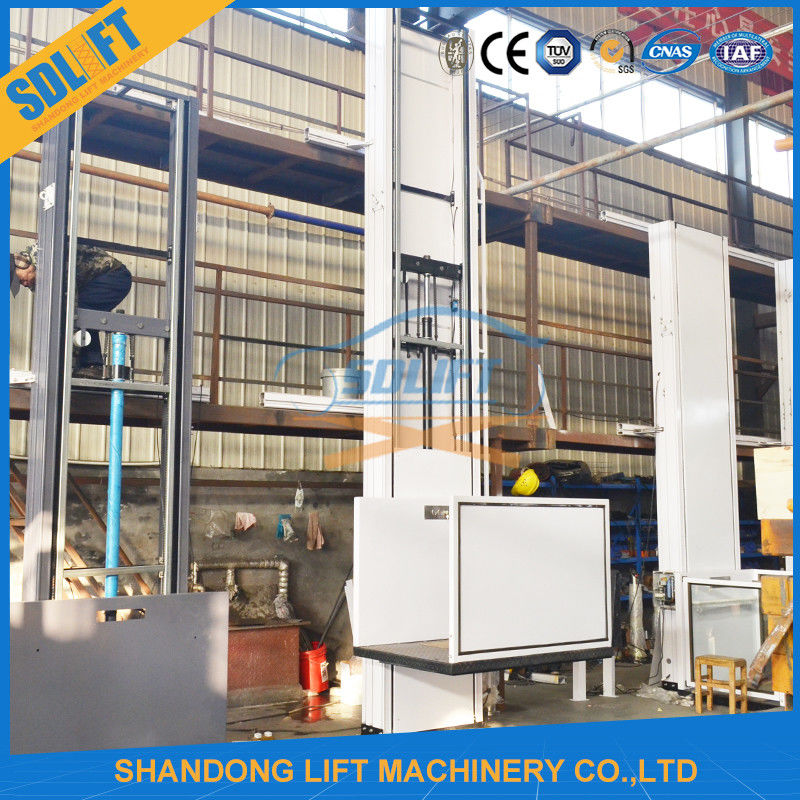

Lift pictures during assembly in our factory:



6m Powder Coating Wheelchair Platform Lift Explosion Proof 06m Powder Coating Wheelchair Platform Lift Explosion Proof 16m Powder Coating Wheelchair Platform Lift Explosion Proof 2



Details of lift parts:


Mechanical platform lock

It is a safe design on glass door to protect people on work platform.

6m Powder Coating Wheelchair Platform Lift Explosion Proof 3

Emergency down button

The platform can be lowered by manual down button in case of power failure

6m Powder Coating Wheelchair Platform Lift Explosion Proof 4

Safety sensor on the platform bottom

The lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally.



6m Powder Coating Wheelchair Platform Lift Explosion Proof 5



Electromagnetic lock of the platform door

Interlocking: The lift won’t work if the door is open, it can only rise when the door is completely closed.

Electromagnetic lock: The door won’t be opened during the rising process.



6m Powder Coating Wheelchair Platform Lift Explosion Proof 6



Three control types

( platform control, remote control, and post control )

6m Powder Coating Wheelchair Platform Lift Explosion Proof 76m Powder Coating Wheelchair Platform Lift Explosion Proof 8

6m Powder Coating Wheelchair Platform Lift Explosion Proof 9



Loading into containers in our factory:



6m Powder Coating Wheelchair Platform Lift Explosion Proof 10



The certificates:



CE Car Lift for sale Hydraulic Car Scissor Lift with high strength Mn Steel



Our services:



1) We can design the vertical wheelchair lifts as per your requirement.
2) The vertical wheelchair
lifts will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
