CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading

CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading

    • CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading
    • CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading
    • CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading
  • CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading

    Product Details:

    Place of Origin: Jinan, Shandong, China
    Brand Name: SDLIFT
    Certification: CE
    Model Number: SJG0.5-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1UNIT
    Price: negotiation
    Packaging Details: solid iron case or plywood case package or as your requirments
    Delivery Time: 5-15 DAYS
    Payment Terms: T/T or L/C
    Supply Ability: 3,000pcs per year
    Contact Now
    Detailed Product Description
    Lift Mechanism: Scissor Lift Lift Drive / Actuation: Electirc + Hydraulic
    Power: 2.2kw Rated Loading Capacity: 500kgs
    Miin. Lifting Height: 500mm Max. Lifting Height: 3000mm
    Table Size: 1500x1500mm Weight: 800kgs
    Application: Warehouse Hydraulic Scissor Lift For Cargo Lifting Material: High Strength Manganese Steel
    Platform: Anti-skid Checkered Plate Safety Device: Explosion-proof Lock Valve

    CE Electric Stationary Hydraulic Scissor Lift for Warehouse



    Cargo Loading



    Application:



    The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

    Operation is easy. There are 2 sets control system installed on the lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.

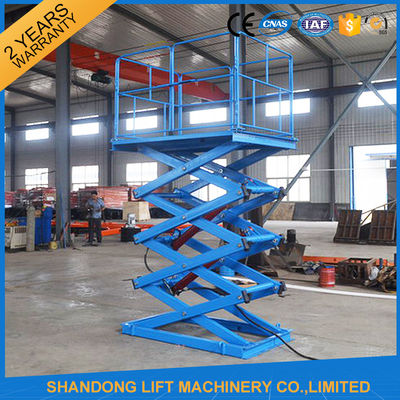

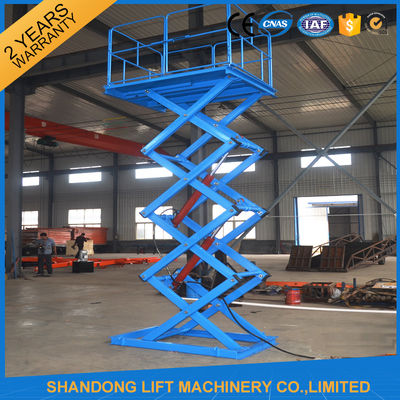

    Stationary hydraulic scissor lift:

    CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading



    The frequent models we supplied for our clients:



    MODEL

    LOAD CAPACITY

    PLATFORM SIZE

    LIFT HEIGHT

    PIT DEPTH

    POWER

    SJG0.3-2

    0.3T

    1.5m x 1.5m

    2m

    400mm

    220V, 240V, 380V or 400V

    SJG0.5-3

    0.5T

    2m x 1.8m

    3m

    500mm

    220V, 240V, 380V or 400V

    SJG1-4.5

    1T

    2.1m x 1.5m

    4.5m

    650mm

    220V, 240V, 380V or 400V

    SJG1.5-4

    1.5T

    2.2m x 1.6m

    4m

    600mm

    220V, 240V, 380V or 400V

    SJG3-3

    3T

    5.2m x 2.6m

    3m

    800mm

    220V, 240V, 380V or 400V

    SJG3-3.5

    3T

    5.6m x 2.7m

    3.5m

    800mm

    220V, 240V, 380V or 400V

    SJG5-10

    5T

    4.5m x 2.5m

    10m

    1150mm

    220V, 240V, 380V or 400V

    SJG8-2.5

    8T

    6.5m x 4.5m

    2.5m

    850mm

    220V, 240V, 380V or 400V

    SJG12-3

    12T

    5.5m x 2.8m

    3m

    950mm

    220V, 240V, 380V or 400V

    SJG15-4.5

    15T

    8m x 2.2m

    4.5m

    1150mm

    220V, 240V, 380V or 400V

    SJG20-5

    20T

    6m x 3m

    5m

    1200mm

    220V, 240V, 380V or 400V

    The stationary hydraulic scissor lift can be customized as your detailed size.



















































    Parts showing:



    CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading



    Safety:

    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
    2) The safety rails to guarantee safety of the goods above lift platform.
    3) Equipped 4 guide rails, to ensure the stationary hydraulic scissor lift runs more smoothly and steadily.
    4) The limit switch system helps the stationary hydraulic scissor lift to stop at accurate position.
    5) Electricity leakage protection device is equipped on, all electric components are CE certified.
    6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.



    The workshops:



    CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading



















































    The customers visiting:



    CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo Loading



    Our Certificates:



    CE 5.5kw Power Electric Stationary Hydraulic Scissor Lift for Warehouse Cargo LoadingOur Services:

    • User-friendly English manual for machine installation using and maintenance.
    • 2 year warranty for whole machine without man-made faults.
    • 2 sets spare parts as additional and free for you together with lift in shipment.
    • We will send you parts for free if there are any non-human factors faults during warranty time.
    • Supply 24-hours technical assistance by email, telephone or other communication online.
    • Engineers are available to your country if necessary.
