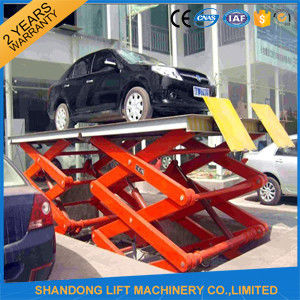

CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height

CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height
CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height

Large Image :  CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height

Product Details:
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG5-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD3980- USD7900 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year

CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height

Description
Application: Double Scissor Car Lift Hydraulic Car Parking System Load Capacity: 3ton-15ton (as Request)
Lift Height: 1m-15m (as Request) Motor: From Italy Or Chinese Famous Brand
Safe Device: Explosion-Proof Lock Valve Lift System: Hydraulic System
Power Supply: 220V/240V/380V/415V (as Request) Material: High Strength Manganese Steel
Color: Red, Grey, Yellow, Blue, Or As Your Optional
High Light:

vehicle scissor lift

,

home garage car lift

Double Scissor Car Lift Hydraulic Car Parking System with CE





Application:

The Double Scissor Car Lift Hydraulic Car Parking System can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the Double Scissor Car Lift Hydraulic Car Parking System , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Double Scissor Car Lift Hydraulic Car Parking System to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Double Scissor Car Lift Hydraulic Car Parking Systems are passed 1.2 times loading test before leaving factory.



The models we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

700mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

The hydraulic car scissor lift car can be customized as your detailed size.



The products showing:

CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height 0The Certificates:

CE Hydraulic Car Parking System Double Scissor Lift Table with 2m - 12m Lift Height 1

Our services:

1) The Double Scissor Car Lift Hydraulic Car Parking System can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
