Product Details:
|
| Application: | Warehouse Stationary Hydraulic Scissor Lift | Loading Capacity: | 2000kgs |
|---|---|---|---|
| Travel Height: | 3500mm | Platform: | Anti-skid Checkered Plate |
| Motor: | From Italy Or Chinese Famous Brand | Package: | Iron Case Or Plywood Case Package |
| Safety Device: | Explosion Proof Lock Valve, Emergency | Warranty: | 2 Years |
| Voltage: | 110v 220v 240v 380v Optional | Lift Drive / Actuation: | Hydraulic + Electric Control |
| Material: | High Strength Manganese Steel | ||
| High Light: | material handling lifts,hydraulic lift platform |
||

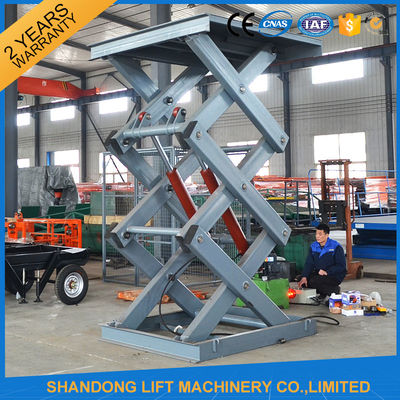

Warehouse Stationary Hydraulic Scissor Lift Material Loading
Hydraulic Scissor Lift with CE:
Application:
·The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the stationary hydraulic scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
Safety Precaution:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
In order to meet your requirements well, may I know your lift requirements as follows
1. lift height
2. load capacity
3. platform size
Or may I know your purpose for the lift? We could recommend the suitable lift for you.
All the lift are produced according to customer requirements
The models we supplied for clients:
|
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
|
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
|
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
|
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
|
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
|
The Stationary Hydraulic Scissor Lift can be customized as your detailed size.
|
|||||
The Products showing:
The customers visiting:
The Certificates:
Our services:
1) We can design the customerized hydraulic scissor car lift as per your requirement.
2) The most suitable hydraulic scissor car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
