Product Details:
|
| Application: | Hydraulic Aerial Scissor Lift Equipment | Loading Capacity: | 1000kgs |
|---|---|---|---|
| Lifting Height: | 9000mm | Platform: | Anti-skid Checkered Plate |
| Motor: | From Italy Or Chinese Famous Brand | Package: | Iron Case Or Plywood Case Package |
| Safety Device: | Explosion Proof Lock Valve, Emergency | Warranty: | 2 Years |
| Voltage: | 110v 220v 240v 380v Optional | Lift Drive / Actuation: | Hydraulic + Electric Control |
| Material: | High Strength Manganese Steel | ||
| High Light: | material handling lifts,hydraulic lift platform |
||

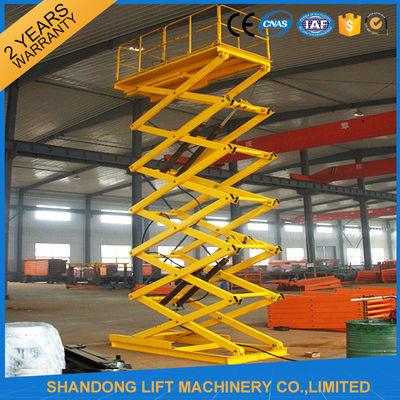

CE Approved Stationary Hydraulic Scissor Lift Fixed Hydraulic Scissor Cargo Lift:
Two Types For Monting:
1) One is to be installed on ground to load cargo and then lifts till a certain height for unloading
the cargo.
2) The other is installed in a lift pit. Then platform table is at the same level with the ground which is
convenient to load the cargo onto it. In this way it also can be called freight elevator.
Application:
·The stationary electric hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the stationary electric hydraulic scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
The frequent models we supplied for our clients:
|
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
|
SJG0.3-2 |
0.3T |
1.5m x 1.5m |
2m |
400mm |
220V, 240V, 380V or 400V |
|
SJG0.5-3 |
0.5T |
2m x 1.8m |
3m |
500mm |
220V, 240V, 380V or 400V |
|
SJG1-4.5 |
1T |
2.1m x 1.5m |
4.5m |
650mm |
220V, 240V, 380V or 400V |
|
SJG1.5-4 |
1.5T |
2.2m x 1.6m |
4m |
600mm |
220V, 240V, 380V or 400V |
|
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
|
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
|
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
|
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1150mm |
220V, 240V, 380V or 400V |
|
SJG20-5 |
20T |
6m x 3m |
5m |
1200mm |
220V, 240V, 380V or 400V |
|
The Stationary Hydraulic Scissor Lift can be customized as your detailed size. |
|||||
The Products showing:
Packaging & Shipping:
The customers visiting:
Our services:
1) We can design the customerized hydraulic scissor car lift as per your requirement.
2) The most suitable hydraulic scissor car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
