Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley

Certifications
Good quality Hydraulic Scissor Car Lift for sales
Good quality Hydraulic Scissor Car Lift for sales
Customer Reviews
I came to order, I saw a very large factory with professional advanced equipment,clean workshop, first-class raw materials, a very trustable supplier!

—— Mr. Marc - Belgium

Very professional for products. Very good services during the order!

—— Mr. James - Australia

Exclent Lift Platform Lift ! Professional Saler ! Good Business with Shandong Lift.

—— Mr. Mushi - India

Very good business with Shandong Lift ! Will co-operate more and more in future!

—— Mr. Bruce - New Zealand

I'm Online Chat Now

Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley

China Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley  supplier
Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley  supplier Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley  supplier

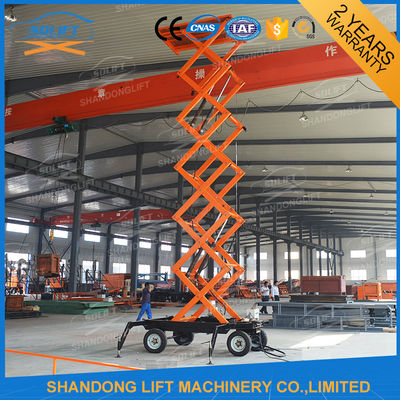

Large Image :  Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO9001 SGS BV
Model Number: SJY0.3-16

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD1980 - 9800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 3800 units per year
Contact Now
Detailed Product Description
Item: Hydraulic Folding Scaffolding Lift Mobile Platform Lift Warranty: 24 Months
Control System: Electric Or Hand Pump Lifting Height: 4m - 20m
Lift Drive: Electric Hydraulic Motor Safety Device: Explosion Proof Lock Valve, Emergency
Motor Power: Customer Required Brand Or Chinese Famous Brand Load Capacity: 300kg 500kg 1000kg
Voltage: 220v 240v 380v Optional

Hydraulic Folding Scaffolding Mobile Platform Lift With 2 Years Warranty:



Product Description:

The Hydraulic Folding Scaffolding Mobile Platform Lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.



Mobile Platform Lift , 300kg 500kg 1000kg Load Capacity Hydraulic Scissor Lift Trolley

Feature:

1. Lift height: 4-18m
2. Loading capacity: 300-1000kg
3. Easy operation, low maintenance
4. ISO/CE. Platform size: 3230*1600m

5. When the electricity is available, usually for Indoor use

6. Voltage: 110V, 220V, 380V, 415V

7. Longer use time

8. Scaffolding lift control system on the platform and on the down place.

9. Electric scissor lift with 24V battery voltage, keeping staff safety.

10. Emergency Decending Button: Although suddenly power off, the button will guarantee the staff getting

 down safely.



Product List:



Model

Capacity

Table size

Max height

Work height

Total dimension

Net weight

SJY0.3-4

300Kgs

1500×750mm

4m

5.7m

1850×900×1900mm

400Kgs

SJY0.3-6

300Kgs

1500×750mm

6m

7.7m

1850×900×1970mm

650Kgs

SJY0.3-8

300Kgs

1650×1000mm

8m

9.7m

2100×1200×2460mm

1200Kgs

SJY0.5-8

500Kgs

1980×1220mm

8m

9.7m

2500×1550×2380mm

1400Kgs

SJY0.8-8

800Kgs

2000×1220mm

8m

9.7m

2600×1550×2640mm

1700Kgs

SJY0.3-10

300Kgs

2100×1220mm

10m

11.7m

2700×1550×2380mm

1500Kgs

SJY0.5-10

500Kgs

2100×1220mm

10m

11.7m

2700×1550×2380mm

1600Kgs

SJY1.0-10

1000Kgs

2220×1220mm

10m

11.7m

2820×1720×2850mm

2380Kgs

SIY0.3-12

300Kgs

2550×1500mm

12m

13.7m

3150×1860×2850mm

2580Kgs

SIY0.5-12

500Kgs

2550×1500mm

12m

13.7m

3150×1860×2850mm

2780Kgs

SJY1.0-12

1000Kgs

2600×1500mm

12m

13.7m

3200×2015×3090mm

3580Kgs

SJY0.3-14

300Kgs

2990×1600mm

14m

15.7m

3600×2000×2850mm

3000Kgs

SJY0.5-14

500Kgs

2990×1600mm

14m

15.7m

3600×2000×2850mm

3200Kgs

SJY0.3-16

300Kgs

3230×1600mm

16m

17.7m

3700×2000×3030mm

3900Kgs

SJY0.3-18

300Kgs

3230×1600mm

18m

19.7m

3700×2000×3250mm

4500Kgs

SJY0.3-20

300Kgs

3230×1600mm

20m

21.7m

3700×2000×3450mm

 5100Kgs
