Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size

China Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size supplier
Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size supplier Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size supplier

Large Image :  Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJG0.25-3

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US1980- USD4800 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 5-15 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Usage: Wheelchair Lift For Disabled People Home Use Small Elevator Warranty: 24 Months
Rated Loading Capacity: 250kg Min. Lifting Height: 400mm
Max. Lifting Height: 3000mm Table Size: 1200mm(L) * 1000mm(W)
Control: Calling Box And Remote Controller Material: Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Drive: Hydraulic Lift Mechanism: Lift System
OEM: Available

250kgs Wheelchair Hydraulic Platform Lift For Disabled People Home Use Small Elevator With CE:



Application:
1. The Wheelchair Lift For Disabled People Home Use Small Elevator provides convenient, reliable and safe access between different levels, supporting a wide selection of application.
2. It is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0 - 6.0m working range, 150-350kg carrying capacity. Ideal for indoor and outdoor application.


Wheelchair Lift Sketch Map:

Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size

Technical Parameters:


Platform size

1200mm(L)* 1000mm(W)

Dimension

1200mm(L)*1450mm(W)* Travel height +700-1100 mm(H)

Max Platform Height

1000mm to 6000mm

Min Platform height

60mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG~350KG

Control voltage

24V/DC

Power Output

2.2KW

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic or screw

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation


In a pot or with assistant ramp

Control Device


Calling box (installed on the wall nearby) and remote
controller(Extra optional)

Emergency Stop


The lifting and lowering process can be stopped immediately
by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately
the safety edge meets obstacles during
operation .

Emergency lowering

The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.

Auto-flap

Turn up after lifting

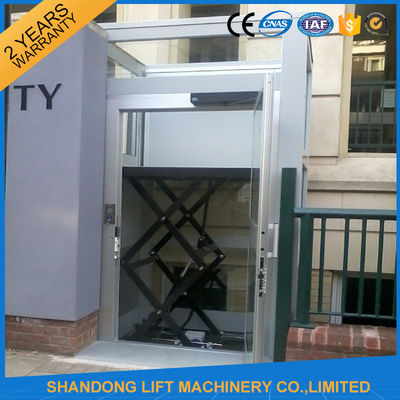

Product pictures:

Hydraulic Home Wheelchair Platform Lift For Disabled People 1.2m * 1m Table Size

The workshops:


Our services:

1) We can design the Wheelchair Lift For Disabled People Home Use Small Elevator as per your requirement.
2) The most suitable Wheelchair Lift For Disabled People Home Use Small Elevator will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
