CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift

CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift

    • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift
    • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift
    • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift
    • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift
    • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift
  • CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT Or OEM
    Certification: CE ISO SGS
    Model Number: SJG3-4.8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: USD3980- USD7800 / UNIT
    Packaging Details: Iron case or plywood case package
    Delivery Time: 5-20 work days
    Supply Ability: 3600units per year
    Contact Now
    Detailed Product Description
    Lift Height: 1.5m-12m (as Request) Load Capacity: 1T-20T (as Request)
    Application: Scissor Car Lift Motor: From Italy Or Chinese Famous Brand
    Safe Device: Explosion-Proof Lock Valve Lift System: Hydraulic System
    Power Supply: 220V/240V/380V/415V (as Request) Material: High Strength Manganese Steel
    Color: Red, Grey, Yellow, Blue, Or As Your Optional Platform Size:: As Your Requests Customzied

    CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift:



    1. Application:

    Scissor Car Lift is one special type scissor lift for car storage or mainain. You can find it normally in 4S shop, exhibition hall, which also used widely in home or apartment garage indoor or outdoor. Pit mounted installation can save much space above ground, and provide convinient access for car.



    2. Product advantages:

    - Installed in the pit,do not occupy space.

    - When lifting up or down, up,down and stop three buttons control the lift.

    - Great load capacity, 1.2 times capacity load test. skidproof platform.

    - Sensitive overload protection devices locking device for failing protection.



    3. Configuration:

    1) Loading capacity: 3000kgs

    2) Lifting height: 4800mm

    3) Plaftrom size: 5500mm x 2600mm

    1) Platform Material: 200mm * 100mm rectangular tube +6mm checkered iron

    2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

    3) Hydraulic system: 380V/4.0Kw

    4) High Precision Hydraulic Cylinder: 100*4sets

    5) Piston Rod: 70*4 hard chromium plating surface.

    6) High-pressure oil pump

    7) Hydraulic oil: summer 46#, winter 32#

    8) Controller: 1 control box below, 1 control panel above platform



    4. Details for scissor car lift:

    1. Install in a pit, save space

    2. Operation: Double controller, Control box on the ground and hand controller at the platform


    5. Some models for your reference below.





    MODEL

    LOAD CAPACITY

    PLATFORM SIZE

    LIFT HEIGHT

    PIT DEPTH

    POWER

    SJG2.5-3

    2.5T

    5.2m x 2.6m

    3m

    700mm

    220V, 240V, 380V or 400V

    SJG2-6.5

    2T

    5.2m x 2.8m

    6.5m

    750mm

    220V, 240V, 380V or 400V

    SJG2.5-3.5

    2.5T

    5.2m x 2.6m

    3.5m

    800mm

    220V, 240V, 380V or 400V

    SJG2.5-5

    2.5T

    5.6m x 3m

    5m

    750mm

    220V, 240V, 380V or 400V

    SJG3-2.5

    3T

    5m x 2.3m

    2.5m

    750mm

    220V, 240V, 380V or 400V

    SJG3-3

    3T

    5.2m x 2.6m

    3m

    800mm

    220V, 240V, 380V or 400V

    SJG3-3.5

    3T

    5.6m x 2.7m

    3.5m

    800mm

    220V, 240V, 380V or 400V

    SJG5-10

    5T

    4.5m x 2.5m

    10m

    1150mm

    220V, 240V, 380V or 400V

    SJG8-2.5

    8T

    6.5m x 4.5m

    2.5m

    850mm

    220V, 240V, 380V or 400V

    SJG12-3

    12T

    5.5m x 2.8m

    3m

    950mm

    220V, 240V, 380V or 400V

    SJG15-4.5

    15T

    8m x 2.2m

    4.5m

    1050mm

    220V, 240V, 380V or 400V

    SJG20-5

    20T

    6m x 3m

    5m

    950mm

    220V, 240V, 380V or 400V

    The scissor car lift can be customized as your detailed size.



    6. Safety:
    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
    2) The safety guard rails to guarantee safety of the car above platform
    3) The limit switch system helps the Car Lift for sale Hydraulic Car Scissor Lift to stop at accurate position
    4) Electricity leakage protection device is equipped on, all electric components are CE certified.
    5) All the Car Lift for sale Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.

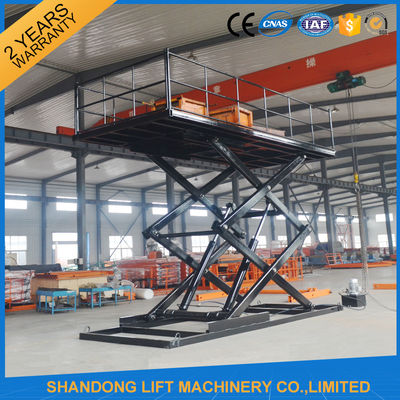

    7. Products Showing:

    CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift



    8. Packaging & Shipping:

    CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift

    9. The Certificates:

    CE 3T 4.8M Hydraulic Scissor Car Lift For Parking Scissor Type Basement Car Lift

    Our services:

    1) The Elevator Car Rrame Hydraulic Garage Car Elevator For Car Parking can be done as your request

    2) Shipment can be arranged from our port to your destination port.

    3) Operation video can be sent to you if needed.

    4) English manual for car lift installation , using and maintenance.

    5) 2 years warranty for whole machine without man-made faults.
    6) We will send you parts for free with non-human factor faults during warranty time.
    7) Supply 24-hours technical assistance by email, telephone or skype.
    8) Engineers are available to your country if necessary.
