5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v

Certifications
Good quality Hydraulic Scissor Car Lift for sales
Good quality Hydraulic Scissor Car Lift for sales
Customer Reviews
I came to order, I saw a very large factory with professional advanced equipment,clean workshop, first-class raw materials, a very trustable supplier!

—— Mr. Marc - Belgium

Very professional for products. Very good services during the order!

—— Mr. James - Australia

Exclent Lift Platform Lift ! Professional Saler ! Good Business with Shandong Lift.

—— Mr. Mushi - India

Very good business with Shandong Lift ! Will co-operate more and more in future!

—— Mr. Bruce - New Zealand

I'm Online Chat Now

5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v

China 5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier
5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier 5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier 5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier 5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier 5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v supplier

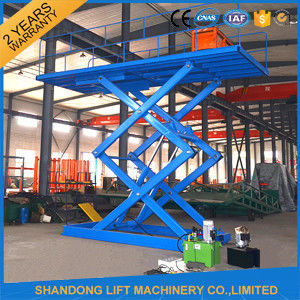

Large Image :  5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v

Product Details:

Place of Origin: Jinan, Shandong, China
Brand Name: SDLIFT
Certification: CE
Model Number: SJG5-5

Payment & Shipping Terms:

Minimum Order Quantity: 1UNIT
Price: USD 2800 - 7800 / unit
Packaging Details: Iron case or plywood case package
Delivery Time: 5-15 DAYS
Supply Ability: 3000units / year
Contact Now
Detailed Product Description
Type: Scissor Lift Table Material: High Strength Manganese Steel
Feature: Easy Operation Safety Convenience Platform: Anti-skid Checkered Plate
Lift Drive / Actuation: Hydraulic Lift System Motor: 380v / 2.2kw Or 220v
Package: Iron Case Or Plywood Case Package Safety Device: Explosion Proof Lock Valve, Emergency
Control Mode: Electric Control Warranty: 2 Years
Application: Hydraulic Material / CargoLifting Voltage: 110v 220v 240v 380v Optional
Lifting Capacity: 5000kgs Lifting Height: 5m
Platform Size: 4m X 2m Surface:: Rust-proof

5ton 5M CE Hydraulic Scissor Lift for Constraction Stationary Scissor Lift Table:



Product Description:



Hydraulic scissor lift introduce

- Stationary Hydraulic Lift offered find extensive use in areas like warehouses and garages.

- Backed by latest technology support, these lifts provide for superior loading capacity as well as smooth ascending and descending support.

- Some of its features include providing for convenient maintenance support, offering stable performance, compact finish structure that allows easy operations, suitable for applications involving cargo delivery and production lines, available in different platform configuration parameters, easy to handle control modes, coming with emergency lowering device for work safety and others.



Application:

- The high quality Stationary hydraulic mini scissor lift table is generally used for lifting cargo and people to working place .

- Loading and unloading goods from ground to underground or to other floors.



Mounting types:

- To be sited on a special place to loading cargo and then lifting to a certain height to handle and move the cargo.

- This kind of lift is usually used in production lines with many different work levels, cargo moving between stairs, truck material handling work and changeable height working table like operation table etc.

- To be sited in a lift pit and accessorial tracks.

- The lift table is in the same level with ground which is convenient to move the cargo onto it. In this way it also can be called freight elevator.





Name



Type.

Mix height

(MM)

rises height

(MM)

Raise weight

(Kg)

Platform size

(mm)

Power (KW)

Weight

(KG)

Stationary lift tables SJG4.5-3.5 760 3500 4500 4000*2000 5.5 4500
SJG2-4.8 700 4800 2000 3600*2000 5.5 3800
SJG5-5.4 950 5400 5000 5000*1600 7.5 6000
SJG3-7.2 860 7200 3000 5500*3000 11 8870
SJG0.5-5 850 5000 500 2000*1000 2.2 1200
SJG1-3.3 840 3300 1000 1900*1500 3 1300
SJG1-4.3 860 4300 1000 2500*2500 1.5 2500
SJG1-6 1230 6000 1000 2200*1500 2.2 2500
SJG2-3.5 1000 3500 2000 2200*1500 2.2 1800
SJG2-4.5 1070 4500 2000 1600*1600 4 2500
SJG2-6.8 1400 6800 2000 2550*2200 4 3300
SJG3-4.5 1060 4500 3000 2200*1800 4 2200

Remark: The Specification can be designed according to detailed requests, the max lifting capacity is 200T.



Product Description:



Features:

- Anti-slip insulating plastic blanket or anti-slip checkered steel plate.

- Easy to operate.

- Electric components are CE certified.

- Using the high strength manganese steel structure

- Wheels are convenient to move

- Electrical control box is water-proof design

- Control box only have three buttons, easily operate

- Smooth working condition, high load capacity, safe and reliable

- Remote control device for optional



Application:

5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v

Safety:
- Explosion-proof lock valve to avoid a sudden drop if emergency occurs
- Blowout Prevention Device and Inclination Preventing Device for optional
- The handrail to guarantee safety of goods
- Equipped with 4 guide rails and 4 guide wheels to ensure safety and steady
- The limit switch system helps the lift to stop at accurate position
- Overload protection facility is equipped on, the lift will not work when goods is overloaded
- All the lifts are passed 1.2 times loading test before leaving factory
Product details show
5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v
Packaging & Shipping
5 ton 5M Constraction Stationary Scissor Lift Table 380v / 2.2kw or 220v
Guarantee & Services:
We supply spare parts free for one year, and supply the technical supporting all the time(spare parts: Emergency buttons, control button, travel switch, oil cylinder seals, etc)
Why choose us?
We are a factory, we have more than 10 years production experience
- We had already passed the authorization by ISO9001:2008 and CE
- Under such a complete set of quality assurance systems, there is a complete set of regulations for the order.
- To ensures our Scissor Lift quality to take a leading position among the fellow products in the home and reach the international standard,we have a complete set of equipment and techniques for testing and controlling the performance of products.
- The CNC control center and PC-based production and marketing system not only improves the working efficiency but also assures the products quality.
