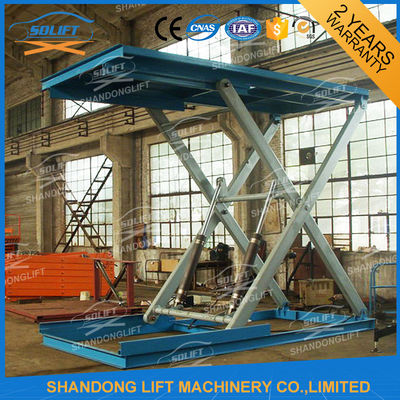

Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved

Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved
Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved

Large Image :  Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved

Product Details:
Place of Origin: CHINA
Brand Name: SDLIFT
Certification: CE
Model Number: SJG4-3.3
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD2000-9000 / unit
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000units / year

Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved

Description
Application: Garage Car Lifts Table Drive Mode: Hydraulic + Motor: Safe
Type Of Products: Hydraulic Scissor Car Lift Motor: Customer Required Brand Or Chinese Famous Brand
Power Supply: 220V/240V/380V/415V Material: High Strength Manganese Steel
Platform: Anti-skid Checkered Plate Safety Device: Explosion Proof Lock Valve, Emergency
Color: Customer Request Package:: Iron Case Or Plywood Case Package
Warranty: 24 Months Loading Capacity: 4T
Lifting/travel Height: 3.3m Platform Size: 5.8m X 2.7m
High Light:

home garage car lift

,

automotive scissor lift

Heavy Duty Scissor Truck Lift Auto Electric Car Scissor Lift with Rupture Valve​:


Product Description

Model SJG4-3.3
Name car auto scissor electric lift
Loading capacity 4000kg
Lifting/travel height 3300mm
Lift platform 5800mm*2700mm
Material High Strength Manganese Steel

Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 0

The car scissor lift can be customized as your request.



Configuration:

Platform Material:120mm*60mm rectangular tube +6mm checkered iron
Scissor material: 200mm*100mm*15mm high strength Manganese Steel
Hydraulic system: 380V/5.5Kw or other request
Piston Rod: 80*4 hard chromium plating surface
Controller: 1 control box below, 1 control panel above platform

Testing:
All the hydraulic car lift for home garage are passed 1.2 times loading test before leaving factory.



Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 1

Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 2Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 3


1) High Precision Hydraulic Cylinder: 110*4sets(high-pressure oil pump,Hydraulic oil: summer 46#, winter 32#).
2) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

Other feature:
1) The safe handrail to guarantee safety of the cars above the platform.
2) The limit switch system helps hydraulic car lift for home garage to stop at accurate position.
3) Electricity leakage protection device is equipped on, all electric components are CE certified.



Control System:


Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 4Auto Electric Hydraulic Scissor Car Lift Rupture Valve CE Approved 5

1. Control:

Lift Up,Stop and Down could be realized at each control point.The lift platform could stop at the accurate loaction point.

2. Pump station:
Italy hydrappp or your request brand.
