Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m

China Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m supplier
Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m supplier Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m supplier Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m supplier Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m supplier

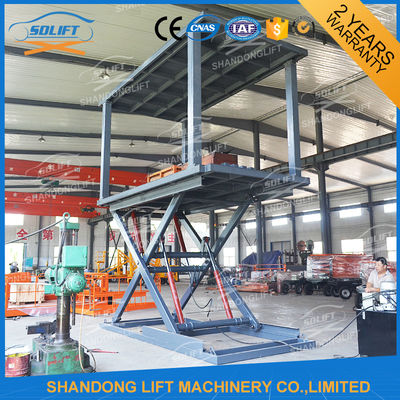

Large Image :  Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m

Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG3-2.6

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD3980- USD8980 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Load Capacity: 3T +3T Lift Height: 2.6M (as Request)
Platform Size: 5.5m X 2.6m Motor: From Italy Or Chinese Famous Brand
Application: Double Parking Car Lift Portable Car Lift Equipment For 2 Cars Parking Color: Red, Grey, Yellow, Blue, Or As Your Optional
Lift System: Hydraulic System Power Supply: 220V/240V/380V/415V (as Request)
Material: High Strength Manganese Steel Safe Device: Explosion-Proof Lock Valve

CE Custom Designed 2 Level Double Parking Car Lift Double Platform Car Park Lift:



Application:

The CE Double Parking Car Lift Portable Car lift Equipment For 2 Cars Parking can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor.
Operation is easy. There are 2 sets control system installed on the CE Double Parking Car Lift Portable Car lift Equipment For 2 Cars Parking , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



Configuration:

1) Loading capacity: 3000kgs for below platform, 3000kgs for upper platform
2) The lifting height: 2600mm travel height
3) The platform size: 5500mm x 2600mm for below and upper platform
4) Platform Material: 200mm * 100mm rectangular tube + 6mm checkered iron
5) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.
6) Hydraulic system:  380V/50hz/3ph/5.5Kw
7) High Precision Hydraulic Cylinder: φ100 , 4sets
8) Piston Rod:  70*4 hard chromium plating surface.
9) oil pump High-pressure oil pump
10) Hydraulic oil: summer 46#, winter 32#
11) Controller: 1 control box below, 1 control panel above platform



Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the CE Double Parking Car Lift Portable Car lift Equipment For 2 Cars Parking to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the CE Double Parking Car Lift Portable Car lift Equipment For 2 Cars Parking are passed 1.2 times loading test before leaving factory.



The showing we have ever supplied for our clients from Canada, France, Belgium, Australia and New Zealand etc.:

Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6mRed Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6mRed Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6mRed Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m



The double deck car parking lift car lift equipment can be customized as your detailed size.

The workshops:Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m



The Customer Visiting in the past years:

Red Grey Yellow Hydraulic Double Deck Car Parking System 5.5m X 2.6m

Our services:

1) The Double Parking Car Lift Portable Car lift Equipment can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4)
English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary
