CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

Certifications
Good quality Hydraulic Scissor Car Lift for sales
Good quality Hydraulic Scissor Car Lift for sales
Customer Reviews
I came to order, I saw a very large factory with professional advanced equipment,clean workshop, first-class raw materials, a very trustable supplier!

—— Mr. Marc - Belgium

Very professional for products. Very good services during the order!

—— Mr. James - Australia

Exclent Lift Platform Lift ! Professional Saler ! Good Business with Shandong Lift.

—— Mr. Mushi - India

Very good business with Shandong Lift ! Will co-operate more and more in future!

—— Mr. Bruce - New Zealand

I'm Online Chat Now

CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

China CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage supplier
CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage supplier CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage supplier CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage supplier CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage supplier

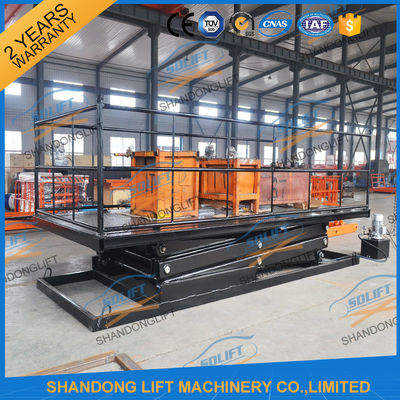

Large Image :  CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE TUV SGS
Model Number: SJG2.5-4.8

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD3980- USD7800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Application: Scissor Lift For Car Parking Safe Device: Explosion-Proof Lock Valve
Lift Drive: Hydraulic Car Lift Motor: From Italy Or Chinese Famous Brand
Material: High Strength Manganese Steel Lift System: Hydraulic System
Power Supply: 220V/240V/380V/415V (as Request) Color: Red, Grey, Yellow, Blue, Or As Your Optional
Structure: Scissor Lift Structure Loading Capacity: 2500kgs
Lifting/travel Height: 4800mm Platform Size: 5500mm X 2600mm

CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage:



Application:

- CE certification Hydraulic car scissor lift table/scissor platform can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the hydraulic car elevator garage car elevator, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

 CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home GarageCE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

The models we supplied for clients:





MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V
The Hydraulic scissor car lift table/scissor platform can be customized as your detailed size.



Configuration:


1) Platform Material:  rectangular tube + checkered iron

2) Scissor material:  high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder

5) Piston Rod:  hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Parts showing:

CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage



Safety:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps car washing lift car to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the car washing lift are passed 1.2 times loading test before leaving factory.



The workshops:



CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage



Packaging & Shipping:



CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

The customers visiting:
CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage

The Certificates:



CE TUV SGS Hydraulic Scissor Car Lift Scissor Car Parking Lift for Home Garage
