3T 5M Stationary Hydraulic Scissor Lift

China 3T 5M Stationary Hydraulic Scissor Lift supplier
3T 5M Stationary Hydraulic Scissor Lift supplier 3T 5M Stationary Hydraulic Scissor Lift supplier 3T 5M Stationary Hydraulic Scissor Lift supplier 3T 5M Stationary Hydraulic Scissor Lift supplier

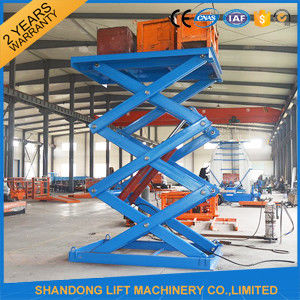

Large Image :  3T 5M Stationary Hydraulic Scissor Lift

Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG3-5

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD3980- USD9800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Application: Mini Hydraulic Scissor Lift From Manufacturer With CE Lift Mechanism: Scissor Lift
Control Mode: Control Panel And Control Box Safety Trip Bar: Yes, Under Platform
Control Panel: Each Floor Loading Lips: Made As Your Requirements
Manual Door: Two Units On Platform Lift System: Hydraulic System
Safe Device: Explosion-Proof Lock Valve

3T 5M Scissor Cargo Lift Hydraulic Scissor Lift with 3000kgs 5000mm With CE:



Application:



The Scissor Cargo Lift Hydraulic Scissor Lift is convenient, efficient and safe ways to transport cargo from one floor to another. With our exceptional loading capacity of 100T, you can be assured that our scissor lifts are the best solution for all but the heaviest of cargo.

Our scissor lift table can be installed in a pit, ensuring stability and safety for the workers, and have
been especially designed to lift cargo and cars with the greatest of ease.





3T 5M Stationary Hydraulic Scissor Lift



The models we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG3-2.5

3T

2m x 3m

2.5m

500mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG3-5

3T

5.6m x 2.7m

5m

800mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

750mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

850mm

220V, 240V, 380V or 400V

SJG60-2.5

60T

8m x 2.2m

2.5m

950mm

220V, 240V, 380V or 400V

The Scissor Cargo Lift Hydraulic Scissor Lift can be customized as your detailed size.







The products:



3T 5M Stationary Hydraulic Scissor Lift



Safety:



1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.

2. The work table would equipped the guardrail to guarantee the safety.

3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

4. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.



Configuration:



1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 110*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



The Certificates:



3T 5M Stationary Hydraulic Scissor Lift



Our services:



1) The Scissor Cargo Lift Hydraulic Scissor Lift can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
