|Usage:||Heavy Duty Underground Car Lift Car Parking System||Lift Drive:||Electric Motor Hydraulic Pump|
|Lift Speed:||3-5m/min||Voltage:||220v/240v /380v/415v/440v|
|Guardrail:||1100mm||Control:||1 Control Box + 1 Upper Control + 2 Remotes|
6M Hydraulic Car Lift,
3m/min Hydraulic Car Lift,
1100mm Guardrail vehicle scissor lift

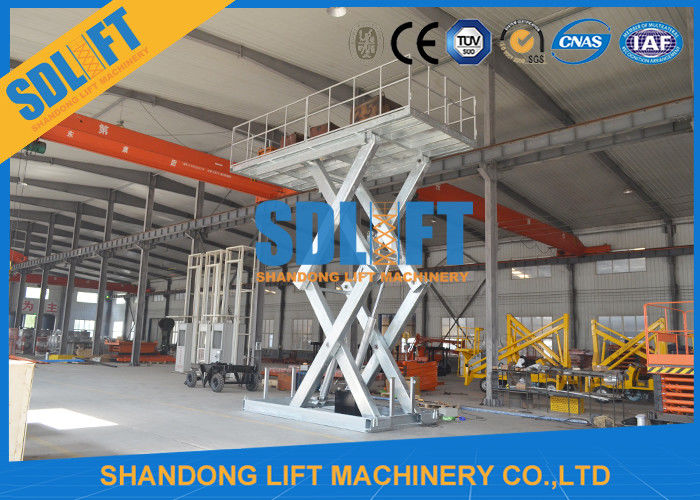

3T 6M Stationary Auto Basement Hydraulic Car Lift Car Parking Lift:
- The car hoist can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the car hoist, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
|MODEL||LOAD CAPACITY||PLATFORM SIZE||LIFT HEIGHT||PIT DEPTH||POWER|
|SJG2.5-3||2.5T||5.2m x 2.6m||3m||750mm||220V, 240V, 380V or 400V|
|SJG2-6.5||2T||5.2m x 2.8m||6.5m||800mm||220V, 240V, 380V or 400V|
|SJG2.5-3.5||2.5T||5.2m x 2.6m||3.5m||800mm||220V, 240V, 380V or 400V|
|SJG2.5-5||2.5T||5.6m x 3m||5m||800mm||220V, 240V, 380V or 400V|
|SJG3-2.5||3T||5m x 2.3m||2.5m||750mm||220V, 240V, 380V or 400V|
|SJG3-3||3T||5.2m x 2.6m||3m||800mm||220V, 240V, 380V or 400V|
|SJG3-3.5||3T||5.6m x 2.7m||3.5m||800mm||220V, 240V, 380V or 400V|
|SJG5-10||5T||4.5m x 2.5m||10m||1150mm||220V, 240V, 380V or 400V|
|SJG8-2.5||8T||6.5m x 4.5m||2.5m||850mm||220V, 240V, 380V or 400V|
|SJG12-3||12T||5.5m x 2.8m||3m||950mm||220V, 240V, 380V or 400V|
|SJG15-4.5||15T||8m x 2.2m||4.5m||1150mm||220V, 240V, 380V or 400V|
|SJG20-5||20T||6m x 3m||5m||1200mm||220V, 240V, 380V or 400V|
|The car hoist can be customized as your detailed size.|
1) Platform Material: rectangular tube +checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 220v,380v or as clients requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps car hoist to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the car hoist are passed 1.2 times loading test before leaving factory.
1) We can design the customerized car hoist as per your requirement.
2) The most suitable car hoistwill be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
