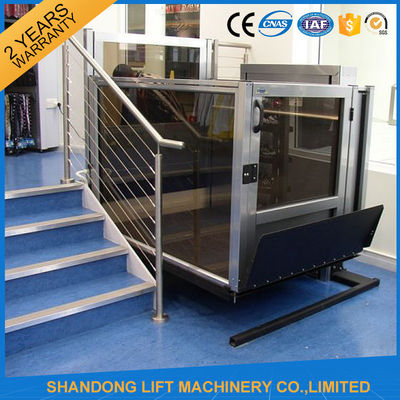

Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People

China Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People supplier
Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People supplier Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People supplier

Large Image :  Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJG0.25-2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US1980- USD4800 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 5-15 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Usage: Indoor Small Elevator For Homes Elder Or Disabled People Warranty: 24 Months
Rated Loading Capacity: 250kg Min. Lifting Height: 80mm
Max. Lifting Height: 2500mm Table Size: 1200mm(L) * 1000mm(W)
Control: Calling Box And Remote Controller Material: Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Drive: Hydraulic Lift Mechanism: Lift Chain
OEM: Available

Indoor Small Elevator For Homes Elder Or Disabled People with CE

with 2 Years Warranty:

Application:
The indoor Small Elevator for Homes elder or disabled people provides convenient, reliable and safe access between different levels, supporting a wide selection of application.
It is divided into two types according to material, which Spray type and Stainless Steel type.
Characterized by novel design, perfect stability and safety, nice appearance, low noise and so on, with 1.0 - 6.0m working range, 150-350kg carrying capacity. Ideal for indoor and outdoor application.


Technical Parameters:

Name

No.

Lift capacity (kg)

Materials

Wheelchair vertical lift

SJG0.25-2.5

250

Spraying plastics

Platform size

1430mm(L)* 900mm(W)

Max Platform Height

2500(mm)

Min Platform height

60mm

Configuration

Open through or front and side entrances

Speed

60mm/s

Load capacity

250KG

Control voltage

24V/DC

Power Output

2.2kw

Power Input

220V/50HZ/25A (or customized for local power supply)

Drive System

Hydraulic

Control Mode

Inching Switch or Automatic

Drive Control

Self-resetting system

Overload

Protection Over current relay

Material of Platform

Spraying plastics

Guard panel & drive cabinet (framework)

304 stainless steel



Automatical ramp

yes

Column switch

Two column switch, one is on the ground floor, one on the first floor

Operation Panel

Polished Stainless steel(up down and Emergency drop valve)

Safety Wane Working Range

75°

Working Condition

Both indoors and outdoors

Working temperature

From -10°~60°C

Installation



Non-pit installation, directly fixed to concrete floor (the concrete

floor below the platform shall not be lower than the ground)

Control Device



Calling box (installed on the wall nearby) and remote

controller(Extra optional)

Emergency Stop



The lifting and lowering process can be stopped immediately

by pressing the emergency button.

Safety device

Safety Interlock

Lock the platform when it is out of control

Safety Sensor

The operation must be stopped immediately the safety edge meets obstacles during operation.

Emergency lowering

The platform can be lowered by opening

hydraulic valve manually or rolling screw rod.

Auto-flap

Turn up after lifting



Wheelchair Lift Sketch Map:
Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People
Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People



Product pictures:

Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People
Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People

The Customers Visiting:Indoor Automatic Wheelchair Platform Lift For Homes Elder / Disabled People



The Certificate:

CE Car Lift for sale Hydraulic Car Scissor Lift with high strength Mn Steel



Our services:

1) We can design the indoor Small Elevator for Homes elder or disabled people as per your requirement.
2) The most suitable Wheelchair Stair Lift Hydraulic Vertical Wheelchair Platform Lift will be recommended to you once we get your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
