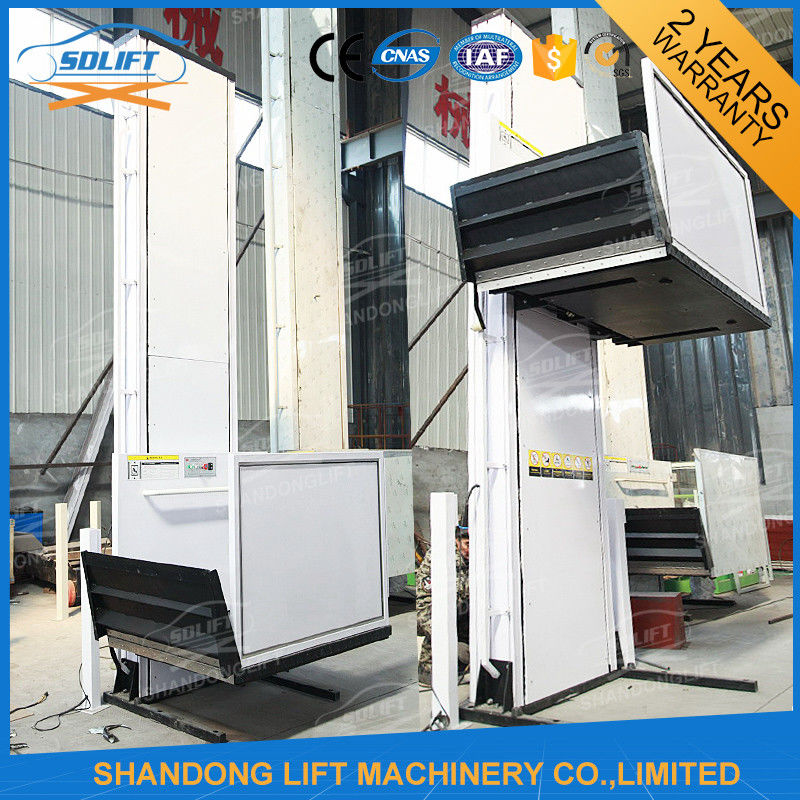

Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs

China Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier
Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs supplier

Large Image :  Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs

Product Details:

Place of Origin: China
Brand Name: SDLIFT
Certification: CE, ISO9001, SGS
Model Number: SJG0.25-6

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: US1980- USD4800 / UNIT
Packaging Details: Iron case or nude
Delivery Time: 5-15 work days
Supply Ability: 3600units per year
Contact Now
Detailed Product Description
Usage: Wheelchair Stair Lift Hydraulic Vertical Wheelchair Platform Lift Warranty: 24 Months
Rated Loading Capacity: 250kg Min. Lifting Height: 80mm
Max. Lifting Height: 6000mm Table Size: 1200mm(L) * 1000mm(W)
Control: Calling Box And Remote Controller Material: Stainless Steel Or Aluminum Alloy With Powder Coating
Lift Drive: Hydraulic Lift Mechanism: Lift Chain
OEM: Available

CE Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m​ 250kgs:



Application:

The hydraulic wheelchair lift for disabled people is a device to transport wheelchair or motorized scooter and individual from one floor to another. It allows user to move freely within a multi-floored building. It is widely used for home, indoor and outdoor of public building.

Lift height: 1m - 10m

Load capacity: 250kg - 500kg

Material: stainless steel or aluminum alloy with Powder coating

Production pictures:

CE 3M Hydraulic Wheelchair Lift For Disabled CE 3M Hydraulic Wheelchair Lift For Disabled



CE 3M Hydraulic Wheelchair Lift For Disabled CE 3M Hydraulic Wheelchair Lift For Disabled



Technical Parameters:

Specification:
Model SJG0.25-3
Load capacity 250kg
Max. Platform Height 3000mm
Platform size 1200mm(L) x 1000mm(W), 1430mm(L) x 900mm(W)
Dimension 1450mm(L)*1250mm(W)*4100mm(H)
Min Platform height 60mm
In and out 180°in and out
Self weight 750kg
Material Stainless steel or aluminum alloy with Powder coating
Power Input 220V/50HZ/1PH/2.2KW
Convenient operation design:
Drive System Hydraulic
Control Mode Inching Switch
Drive Control Self-resetting system
Calling device Calling box (Located at ground and upstairs), remote controller (optional)
Column switch Two column switches, one is on the ground floor, one on the first floor
Working temperature From -10°~60°C
Overload Protection over current relay
Automatic ramp 75°ramp Range
Working Condition Both indoors and outdoors
Installation Non-pit installation, directly fixed to concrete floor
Safety Device:
Safety Interlock: Lock the platform when it is out of control
Emergency Stop The lift can be stopped immediately in case of any emergency
Emergency Lowering The platform can be lowered by manual down button in case of power failure
Safety Sensor The lift will be stopped immediately if the safety edge meets obstacle when going down.
Auto-flap ramp Turn up to max 75°and prevent the wheelchair outside



Detailed views:

CE 3M Hydraulic Wheelchair Lift For Disabled CE 3M Hydraulic Wheelchair Lift For Disabled



CE 3M Hydraulic Wheelchair Lift For Disabled CE 3M Hydraulic Wheelchair Lift For Disabled



Installation pictures:

Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs



Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs



The Certificates:

 Outdoor Wheelchair Lift Electric Disabled Lift for Elder with 6m 250kgs

Our services:

1) We can design the hydraulic wheelchair lift for disabled people as per your requirement.

2) The suitable hydraulic wheelchair ift will be recommended to you once we get your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)
Engineers are available to your country if necessary.
