|Application:||Mechanical Scissor Lift For Cargo Lifting||Lift Mechanism:||Scissor Lift|
|Load Capacity:||1T - 30T||Lift Height::||1m - 12m|
|Loading Ramp:||Made As Your Requirements||Safety Handrail:||2 Sides Or 4 Sides|
|Lift System:||Hydraulic System||Safe Device:||Explosion-Proof Lock Valve|
|Control Mode:||Control Panel And Control Box|
material handling lifts,
hydraulic lift platform,

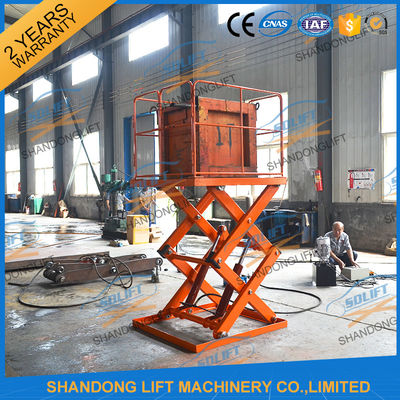

30T Load Stationary Hydraulic Scissor Lift
Small electric type portable hydraulic fixed mechanical scissor lift with CE
·The scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the cargo elevator, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
The frequent models we supplied for our clients:
|LOAD CAPACITY||PLATFORM SIZE||LIFT HEIGHT||PIT DEPTH||POWER|
|SJG0.3-2||0.3T||1.5m x 1.5m||2m||400mm||220V, 240V, 380V or 400V|
|SJG0.5-3||0.5T||2m x 1.8m||3m||500mm||220V, 240V, 380V or 400V|
|SJG1-4.5||1T||2.1m x 1.5m||4.5m||650mm||220V, 240V, 380V or 400V|
|SJG1.5-4||1.5T||2.2m x 1.6m||4m||600mm||220V, 240V, 380V or 400V|
|SJG5-10||5T||4.5m x 2.5m||10m||1150mm||220V, 240V, 380V or 400V|
|SJG8-2.5||8T||6.5m x 4.5m||2.5m||850mm||220V, 240V, 380V or 400V|
|SJG12-3||12T||5.5m x 2.8m||3m||950mm||220V, 240V, 380V or 400V|
|SJG15-4.5||15T||8m x 2.2m||4.5m||1150mm||220V, 240V, 380V or 400V|
|SJG20-5||20T||6m x 3m||5m||1200mm||220V, 240V, 380V or 400V|
The scissor lift can be customized as your detailed size.
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above scissor lift .
3) Equipped 4 guide rails, to ensure the scissor lift runs more smoothly and steadily.
4) The limit switch system helps the scissor lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the scissor lift are passed 1.2 times loading test before leaving factory.
The customers visiting:
1) We can design the scissor lift as per your requirement.
2) The scissor lift will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
