Product Details:
|
| Application: | Warehouse Hydraulic Cargo Scissor Lift | Lift Height: | 7000mm |
|---|---|---|---|
| Load Capacity: | 2000kgs | Platform Size: | 3m X 2m |
| Platform: | Anti-skid Checkered Plate | Lift System: | Hydraulic System |
| Safe Device: | Explosion-Proof Lock Valve | Control Mode: | Control Panel And Control Box |
| Color: | Orange, Black, Green Or As Your Request | ||
| High Light: | material handling lifts,hydraulic scissor lift table,Home Stationary Hydraulic Scissor Lift |
||

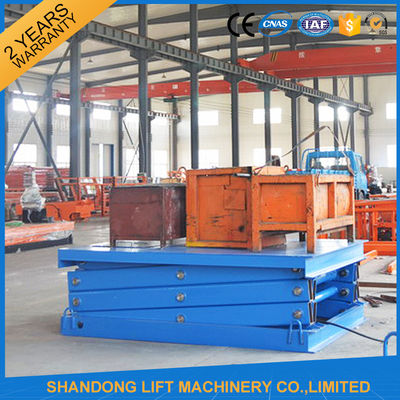

Adjustable Warehouse or Home Scissor Lift Hydraulic Cargo Scissor Lift
·The hydraulic cargo lift can be used to lift cargo or car with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the hydraulic lifting machine, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
Configuration:
1) Lift height: 7m
2) Lift loading capacity: 2T
3) Lift platform size: 3m * 2m
4) Platform Material: rectangular tube + checkered anti-slip plate
5) Support scissors: high strength Manganese Steel.
6) Hydraulic system: 380V/5.5Kw or 220v or as your request
7) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
8) Piston Rod: hard chromium plating surface.
9) High-pressure oil pump: from Italy or Chinese famous brand.
10) Hydraulic pipe: high pressure pipe with double expanded metal protected
11) Hydraulic oil: summer 46#, winter 32#
12) Controller: 1 control box below, 1 hand controller above platform
Production pictures:
The frequent models we supplied for our clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
| SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The hydraulic scissor lift can be customized as your detailed size. | |||||
