Name: Hydraulic Scissor Car Lift For Home Garages
Brand: SDLIFT Or OEM
SKU: SJG2.5-2.5
Price: 3980 USD
Availability: InStock
Rating: 5 (159 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG2.5-2.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD8800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 30 days

Supply Ability: 1200units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                industrial lifts elevators, scissor lift platform, 2000kgs Hydraulic Scissor Car Lift


Application:	Car Lifts For Home Garages	Design:	Scissor Car Lift
Load Capacity:	2500kgs	Lift Height:	2500mm
Warranty:	24 Months	Lift System:	Hydraulic System
Power:	220v,240v,380v Or Other	Install:	Underground
Color:	Orange, Grey, Blue Or Optional

Application:	Car Lifts For Home Garages
Design:	Scissor Car Lift
Load Capacity:	2500kgs
Lift Height:	2500mm
Warranty:	24 Months
Lift System:	Hydraulic System
Power:	220v,240v,380v Or Other
Install:	Underground
Color:	Orange, Grey, Blue Or Optional

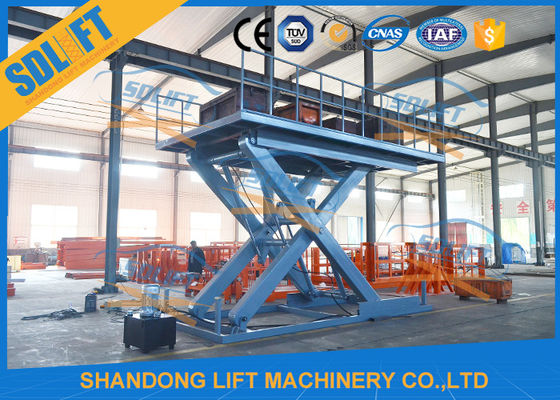

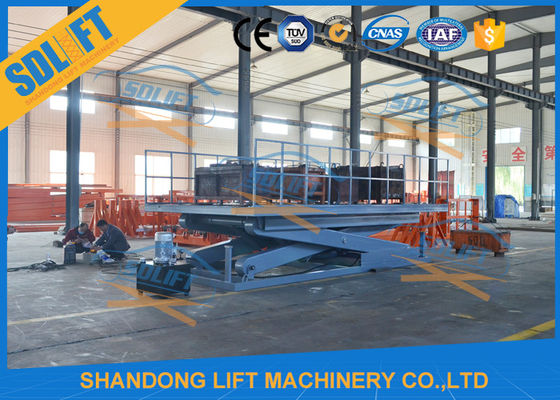

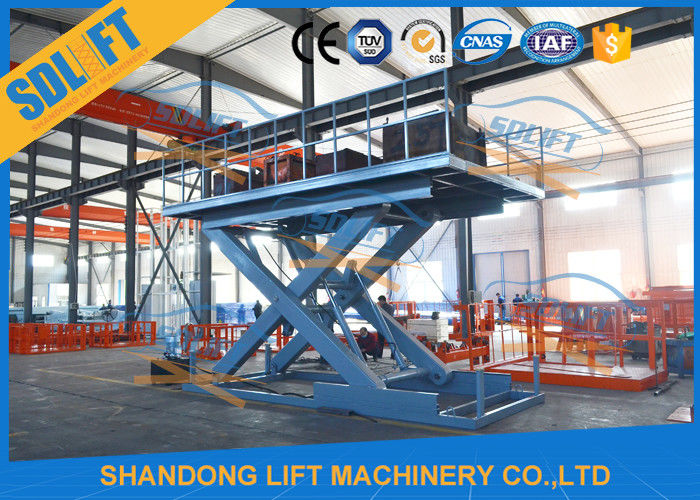

Hydraulic Scissor Car Lift For Home Garages

2018 hot sales car lifts for home garages hydraulic scissor car lift

Application:

- The hydraulic scissor car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

- Operation is easy. There are 2 sets control system installed on the car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.

scissorcar lift.jpg

The models we supplied for clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The Hydraulic scissor car lift can be customized as your detailed size.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 90*4sets

5) Piston Rod: 45*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform

Part showing:

Hydraulic Scissor Car Lift For Home Garages 1

Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The safety rails to guarantee safety of the cars above the platform.

3) The limit switch system helps Hydraulic scissor car lift to stop at accurate position.

4) Electricity leakage protection device is equipped on, all electric components are CE certified.

5) All the Hydraulic car scissor lift are passed 1.2 times loading test before leaving factory.

Production Pictures:

Hydraulic Scissor Car Lift For Home Garages 4

Packaging & Shipping:

.jpg

The customers visiting:

The Certificates:

Our services:

1) We can design the customerized hydraulic scissor car lift as per your requirement.

2) The ar parking lift will be recommended to you once we got your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 year warranty for whole machine without man-made faults.

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.
