Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling

Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling

Product Details:

Place of Origin: CHINA
Brand Name: SDLIFT
Certification: CE
Model Number: SJG1-8

Payment & Shipping Terms:

Minimum Order Quantity: 1uint
Price: USD1000-15000/unit
Packaging Details: The normal package is wooden box for cargo lift/cargo elevator. If export to european countries, the wooden box will be fumigated. If container is too tighter, we will use pe film for packing or pack cargo lift according to customers special request.
Delivery Time: 15 working days from deposit for one cargo lift
Payment Terms: T/T, L/C
Supply Ability: 3500unit/year
Get Best Price Contact Now

Detail Information

Place Of Origin: Shandong, China (Mainland) Lift Mechanism: Hydraulic + Lift Chain
Rated Loading Capacity: 1000kg Table Size: 2600*2000mm
Guardrail Height: 1100mm Power: 4kw, 220v;240v;380v;415v;
Max. Lifting Heigh: 8000mm Application: Cargo Lift For Warehouse Or Work Shop
Lift Speed: 3-6m/min
High Light:

industrial lifts elevators

,

scissor lift platform

Product Description

Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling

1ton 8m Hydraulic Scissor Cargo Warehouse Elevator Lift with CE Fixed Warehouse Cargo Elevator​:



Main Features:

1. used for lifting cargo

2large loading capacity

3hydraulic system increase safety

4steady working





Product Introduction:

1. The Hydraulic Scissor Cargo Warehouse Elevator Lift is generally used for lifting cargo and people to working place .Loading and unloading goods from ground to underground or to other floors



2. It is characterized by great loading capacity.



3. Hydraulic lift system Steady ascending and descending



4. The Hydraulic Scissor Cargo Warehouse Elevator Lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof  lock valve to avoid a sudden drop if emergency occurs.



5. The limit switch system helps the lift to stop at accurate position.



6. The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of cargo.



7. Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.


8. control system adopt elevator control system,very convenient and safety.



9. Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.

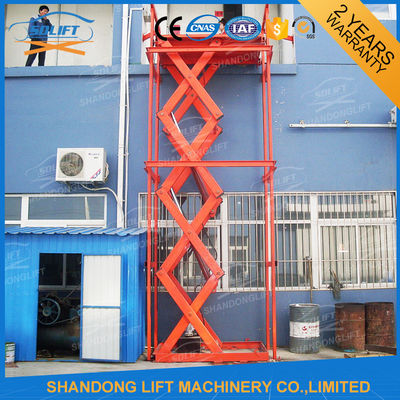

 Photos:



Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling 0Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling 1Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling 2Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling 3



Key parameters:

   Load weight:

       1000kgs

   Table size:

       2.6m x 2m

   Lift height:

       8m

   Structure:

       high-strength Mn steel material

   Control system

       1 control box, 1 control panel

   Power:

      380v / or 220v / or 240v / or 400v

   Safety device:

      explosion-proof lock valve

   Standard

      CE, ISO9001



Safety:

1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above platform.
3) Equipped 2 guide rails, to ensure the Warehouse Elevator Lift runs more smoothly and steadily.
4) The limit switch system helps the lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the warehouse elevator lift are passed 1.2 times loading test before leaving factory.

We have two types of Warehouse Elevator Lift as follows,



Stationary scissor lift.png













Warehouse Hydraulic Scissor Lifting Equipment for Cargo Loading / Material Handling 5The frequent models we supplied for our clients:



MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG0.3-2

0.3T

1.5m x 1.5m

2m

400mm

220V, 240V, 380V or 400V

SJG0.5-3

0.5T

2m x 1.8m

3m

500mm

220V, 240V, 380V or 400V

SJG1-4.5

1T

2.1m x 1.5m

4.5m

650mm

220V, 240V, 380V or 400V

SJG1.5-4

1.5T

2.2m x 1.6m

4m

600mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-3

2.5T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

800mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1150mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

1200mm

220V, 240V, 380V or 400V

 The warehouse elevator lift can be customized as your detailed size.



Factory pictures:

The Tanzania customers came to test the warehouse elevator lift in our factory:

DSC_0110-1 (7).JPG



The France customer came to test the warehouse elevator lift in our factory:




The products in our factory:


0001.jpg 0010.jpg
