Product Details:
|
| Application: | Hydraulic Scissor Table Elevating Platform | Load Capacity: | 8000kgs |
|---|---|---|---|
| Lift Height: | 2500mm | Platform Size: | 7000mm X 2500mm |
| Protection Device: | Safety Trip Bar | Color: | Red, Yellow, Grey Blue Or Optional |
| Voltage: | 220Vv, 380v, 415v, Optional | Lift Speed: | 3-5m/min |
| Control Voltage: | 24V DC | ||
| High Light: | material handling lifts,hydraulic lift platform,8T Electrical Hydraulic Scissor |
||

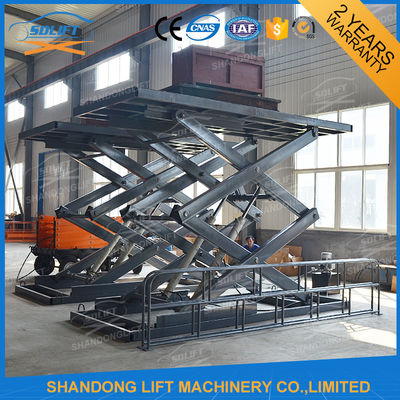

Electrical Hydraulic Scissor Table Elevating Platform With Jack Lift with CE
Application:
·The Electrical Hydraulic Scissor Table Elevating Platform With Jack Lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Load capacity: 300kg - 30000kg
Lift height: 1m - 12m
Platform size: as customized
The frequent models we supplied for our clients:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
| The hydraulic scissor lift can be customized as your detailed size. | |||||
Parts Showing:
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above the scissor lift .
3) Equipped 4 guide rails, to ensure the hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.
Installation Showing:
The Customers' visiting:
