|Application:||Small Home Lift Personal Elevator Hydraulic Indoor Residential Elevator||Drive Type:||AC, DC, Hydraulic, Screw|
|Elevator Type:||Home Passenger Elevator||Lifting Height:||6m|
|Door Open Direction:||Entry And Exit Could Be Optional||Appearance:||Powder Coating With Nice Outlook|
handicap lift equipment,
disability lifting equipment
|Small Home Lift Personal Elevator Hydraulic Indoor Residential Elevator|
Small Home Lift Personal Elevator Hydraulic Indoor Residential Elevator is a device to transport wheelchair or people from one floor to another. The home lift allows user to move freely within a multi-floored building and applicable to hotels , households,shopping malls and hospitals etc.
|Main Paramters||Small Home Lift|
|Platform size||1200*900mm, 1200*1000 mm|
|Outer case||Stainless steel or aluminum alloy with powder coating|
|Useage||Indoors or Outdoors|
|Note||All the parameters can custom-made according site request|
|Main Parts||Small Home Lift|
|Floor control column||It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button|
|Control Panel||Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use, we can lock the lift|
|Remote control||User can control the platform by remote controls|
|Drive tower||The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder etc.|
|Handrail||When the users enter into the platform, they can hold on it for safety when lifting up and down|
|Automatic ramp||When the platform off the ground, it will fold up automatically to ensure the users safety|
|Safety Device||Small Home Lift|
|Safety Interlock||Lock the platform when the vertical platform lift encounters an emergency|
|Safety Sensor||The operation must be stopped immediately the safety edge meets obstacles during operation|
|Emergency lowering||The platform can be lowered by opening hydraulic valve manually or rolling screw rod|
|Auto-flap||The small ramp will turn up while lifting|

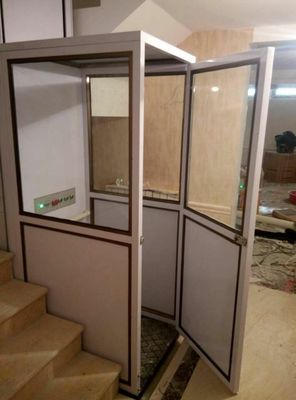

Aluminum with tempered glass enclosure can be added per actual need.
Mechanical platform lock
It is a double safe design to protect people on platform
Emergency down button
The platform can be lowered by manual down button in case of power failure
Safety sensor on the platform bottom
The lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally.
Electromagnetic lock of the platform door
Interlocking: The lift won’t work if the door is open, it can only rise when the door is completely closed.
Electromagnetic lock: The door won’t be opened during the rising process.
Three calling and control type
(platform control, remote control, post control)
You can control the wheelchair lift at any place.
|MODEL||Lifting height||Platform size||Load capacity||Total dimention||Self weight|
