Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift

Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift
Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift
Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift

Large Image :  Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift

Product Details:
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG1.5-3.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD2200- USD4800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 1200units per year

Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift

Description
Application: Hydraulic Electric Home Scissor Lift Platform Lift Height: 3500mm
Load Capacity: 1500kgs Lift Mechanism: Scissor Lift Lift Drive / Actuation: Hydraulic Power: 3.0kw Rated Loading: Scissor Lift
Handrail: 2 Sides Or 4 Sides Color: Red, Yellow, Grey Blue Or Optional
Safe Device: Explosion-Proof Lock Valve Control Mode: Control Panel And Control Box
Feature: Easy Operation Safety Convenience
High Light:

material handling lifts

,

hydraulic lift platform

,

1.5T Stationary Hydraulic Scissor Lift

1.5T 3.5M Hydraulic Warehouse Scissor Lift Cargo Scissor Lift Platform:



Application:



· The stationary hydraulic scissor cargo lift platform can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.

· Load capacity: 1500kg

. Lift height: 3500mm

. Platform size: 2000*1800mm



Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift 0

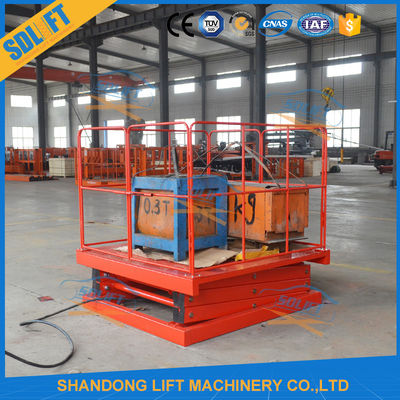

The photo of this lift in our workshop:

Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift 1



Parts Showing:



stationary scissor lift1



Configuration:



1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V or 220v or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box below, 1 hand controller above platform



Safety:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above the scissor lift .
3) Equipped 4 guide rails, to ensure the hydraulic scissor lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic scissor lift table to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.



Installation Showing:



Application fields
  • Warehouse
  • Feeding of processing machinery(in wood ,plastic,glass,steel)
  • Conveyor system,packaging system.
  • Loading bay.
  • Loading and unloading pallets for aircraft.
  • Connection between different stages.
  • Application fields



Safe 1.5T 3.5M Stationary Hydraulic Scissor Lift Hydraulic Warehouse Scissor Lift 3
