Highlight:
stacker car parking system
, garage car elevator
Application: |
Hydraulic Scissor Car Lift For Basement |
Lift Height: |
3m |
Load Capacity: |
3T + 3T |
Lift Drive: |
4pcs Hydraulic Cylinders |
Power: |
380v Or 220v Or 240v |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Material: |
High Strength Manganese Steel |

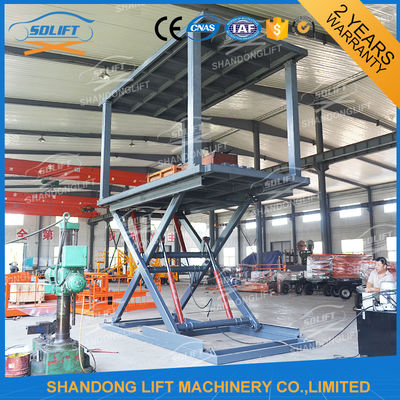

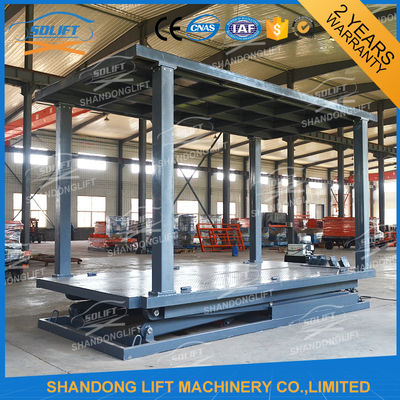

3T 3M Hydraulic Scissor Car Lift High Strength Manganese Steel Material For Basement
Hydraulic scissor car lift for basement with CE
1) Load capacity: 3000kgs (lower platform)
3000kgs (upper platform)
2) Platform size: 5.2m x 2.6m (lower platform)
5.2m x 2.6m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Power: 380v/50hz/3ph/5.5kw
6) Control system: 1 control box, 1 control panel
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001
Application:
Hydraulic Scissor Car Lift for Basement can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the scissor car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
Safety:
1. The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.
2. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
3. The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the lowest position.
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Parts showing:
The models we supplied for clients:
|
MODEL
|
LOAD CAPACITY
|
PLATFORM SIZE
|
LIFT HEIGHT
|
PIT DEPTH
|
POWER
|
|
SJG2.5-3
|
2.5T
|
5.2m x 2.6m
|
3m
|
600mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-3.5
|
2.5T
|
5.2m x 2.6m
|
3.5m
|
700mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-5
|
2.5T
|
5.6m x 3m
|
5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG3-2.5
|
3T
|
5m x 2.3m
|
2.5m
|
700mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3
|
3T
|
5.8m x 2.8m
|
3m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3.5
|
3T
|
5.6m x 2.7m
|
3.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG8-2.5
|
8T
|
6.5m x 4.5m
|
2.5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG12-3
|
12T
|
5.5m x 2.8m
|
3m
|
850mm
|
220V, 240V, 380V or 400V
|
|
SJG15-4.5
|
15T
|
8m x 2.2m
|
4.5m
|
950mm
|
220V, 240V, 380V or 400V
|
|
The Double Deck Hydraulic Scissor Car Lift can be customized as your detailed size.
|
The products:
The Certificates:
Our services:
1) The Double Deck Hydraulic Scissor Car Lift can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
