Product Details
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG1-3
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Price: USD2800- USD4800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1200units per year
Application: |
Hydraulic Cargo Lift For Warehouse |
Lift Mechanism: |
Scissor Lift |
Lift Height: |
3m |
Lift Capacity:: |
1000kg |
Platform Size: |
2500 X 2000mm |
Safety Handrail: |
4 Sides |
Lift System: |
Hydraulic System |
Safe Device: |
Explosion-Proof Lock Valve |
Control Mode: |
Control Panel And Control Box |
Application: |
Hydraulic Cargo Lift For Warehouse |
Lift Mechanism: |
Scissor Lift |
Lift Height: |
3m |
Lift Capacity:: |
1000kg |
Platform Size: |
2500 X 2000mm |
Safety Handrail: |
4 Sides |
Lift System: |
Hydraulic System |
Safe Device: |
Explosion-Proof Lock Valve |
Control Mode: |
Control Panel And Control Box |
· Parameters:
Load capacity: 1000kg
Lift height: 3000mm
Platform size: 2500mm x 2000mm
Power: 220v/50hz/1ph/3.0kw
· Application:
·The hydraulic cargo lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.
·Operation is easy. There are 2 sets control system installed on the hydraulic lift , 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.
· Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above Electric Hydraulic cargo lift platform .
3) Equipped 4 guide rails, to ensure the hydraulic cargo lift runs more smoothly and steadily.
4) The limit switch system helps the hydraulic cargo lift to stop at accurate position.
5) Electricity leakage protection device is equipped on, all electric components are CE certified.
6) All the hydraulic cargo lift are passed 1.2 times loading test before leaving factory.
· The frequent models we supplied for our clients:
MODEL
|
LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The hydraulic cargo lift can be customized as your detailed size.
|
· Parts Showing:
· Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 220V/3.0Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform

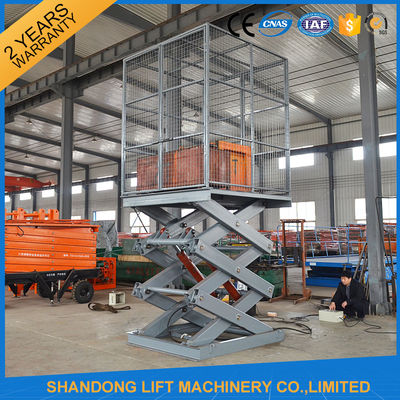

· Finished pictures in our factory:
· CE Certificate:
· Our services:
1) We can design the hydraulic cargo lift as per your requirement.
2) The most suitable hydraulic cargo lift will be recommended to you once we get your requirement
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
