|Usage:||In Floor Scissor Type Car Double Layer Lift Parking||Load Capacity:||3000kg / 2000kg|
|Lifting Speed:||3m/min.||Safety Device:||Explosion Proof Lock Valve|
|Certificate:||CE / ISO||Drive Mode:||Hydraulic|
stacker car parking system,
garage car elevator

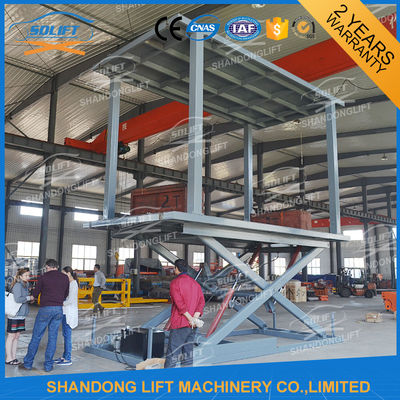

in Floor Scissor Type Car Double Layer Lift with CE
1) Load capacity: 3000kgs (lower platform)
2000kgs (upper platform)
2) Platform size: 5.5m x 2.7m (lower platform)
5.5m x 2.7m (upper platform)
3) Lift height: 2.5m
4) Height between platforms: 2.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001
The in Floor Scissor Type Car Double Layer Lift can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor. Steady working and easy operation, it can be installed underground or in basement.
|Model||load capacity||Platform size||Lift height||Pit depth||Power|
|SJG2.5-3||2.5T||5.2m×2.6m||3m||750mm||220v, 240v,380v or 400v|
|SJG2-6.5||2T||5.2m×2.8m||6.5m||800mm||220v, 240v,380v or 400v|
|SJG2.5-3.5||2.5T||5.2m×2.6m||3.5m||800mm||220v, 240v,380v or 400v|
|SJG2.5-5||2.5T||5.6m×3m||5m||800mm||220v, 240v,380v or 400v|
|SJG3-2.5||3T||5m×2.3m||2.5m||750mm||220v, 240v,380v or 400v|
|SJG3-3||3T||5.2m×2.6m||3m||800mm||220v, 240v,380v or 400v|
|SJG3-3.5||3T||5.6m×2.7m||3.5m||800mm||220v, 240v,380v or 400v|
|SJG5-10||5T||4.5m×2.5m||10m||1150mm||220v, 240v,380v or 400v|
|SJG8-2.5||8T||6.5m×4.5m||2.5m||850mm||220v, 240v,380v or 400v|
|SJG12-3||12T||5.5m×2.8m||3m||950mm||220v, 240v,380v or 400v|
|SJG15-4.5||15T||8m×2.2m||4.5m||1150mm||220v, 240v,380v or 400v|
|SJG20-5||20T||6m×3m||5m||1200mm||220v, 240v,380v or 400v|
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps Double Parking Car Lift to stop at accurate position.
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
4) All the in Floor Scissor Type Car Double Layer Lift are passed 1.2 times loading test before leaving factory.
Package and loading into a container:
1) We can design the in Floor Scissor Type Car Double Layer Lift as per your requirement.
2) The Double Parking Car Lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
