Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG3-2.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD7800- USD15800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1200 units per year
Get Best Price Contact Now

Detail Information

Usage: Car Lifts For Home Garages Car Parking Type: 4 Hydraulic Cylinders Scissor Car Lift
Material: Heavy Duty Mn Steel Safety Device: Explosion Proof Lock Valve
Color: Blue, Black, Grey Or As Your Choice Guarantee: 24 Months
High Light:

automated car parking system

,

garage car elevator

Product Description

3T 2.5M Double Deck Hydraulic Car Lifts

Double Deck Hydraulic Car Lifts For Home Garages Car Parking



Parameters:

1) Load capacity: 3000kgs (lower platform)
                            3000kgs (upper platform)
2) Platform size: 5.6m x 2.6m (lower platform)
                           5.6m x 2.6m (upper platform)
3) Lift height: 2.5m
4) Height between platforms: 2.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001



Sample Parts showing:

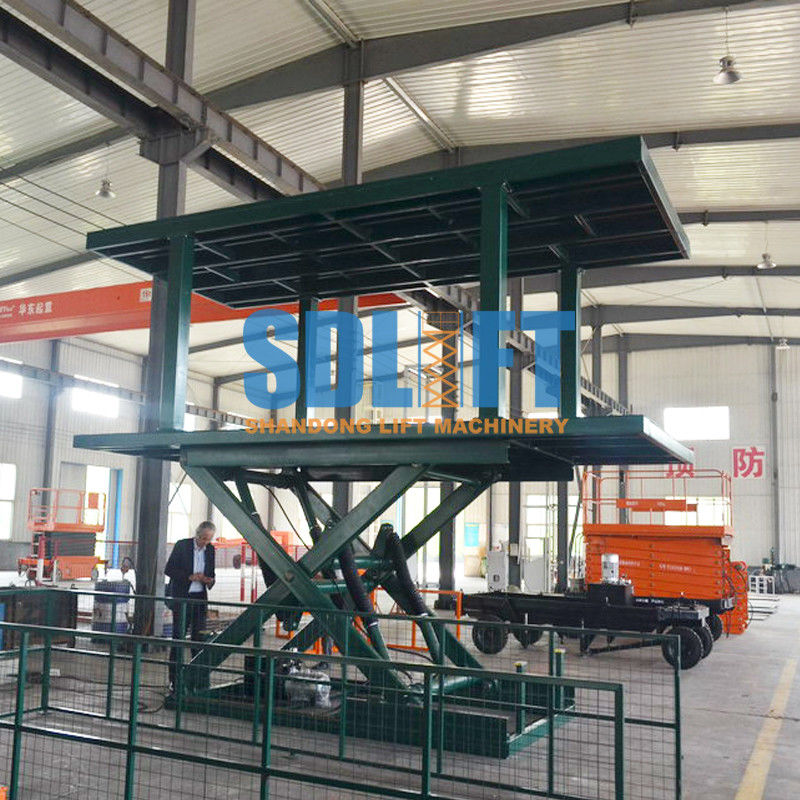

3T 2.5M Double Deck Hydraulic Car Lifts 0





Product Description


The Double Deck Hydraulic Car Lifts can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, or to second floor. Steady working and easy operation, it can be installed underground or in basement.


Model list



Model load capacity Platform size Lift height Pit depth Power
SJG2.5-3 2.5T 5.2m×2.6m 3m 750mm 220v, 240v,380v or 400v
SJG2-6.5 2T 5.2m×2.8m 6.5m 800mm 220v, 240v,380v or 400v
SJG2.5-3.5 2.5T 5.2m×2.6m 3.5m 800mm 220v, 240v,380v or 400v
SJG2.5-5 2.5T 5.6m×3m 5m 800mm 220v, 240v,380v or 400v
SJG3-2.5 3T 5m×2.3m 2.5m 750mm 220v, 240v,380v or 400v
SJG3-3 3T 5.2m×2.6m 3m 800mm 220v, 240v,380v or 400v
SJG3-3.5 3T 5.6m×2.7m 3.5m 800mm 220v, 240v,380v or 400v
SJG5-10 5T 4.5m×2.5m 10m 1150mm 220v, 240v,380v or 400v
SJG8-2.5 8T 6.5m×4.5m 2.5m 850mm 220v, 240v,380v or 400v
SJG12-3 12T 5.5m×2.8m 3m 950mm 220v, 240v,380v or 400v
SJG15-4.5 15T 8m×2.2m 4.5m 1150mm 220v, 240v,380v or 400v
SJG20-5 20T 6m×3m 5m 1200mm 220v, 240v,380v or 400v





Advantages:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps Double Deck Hydraulic Car Lifts to stop at accurate position.

3) Electricity leakage protection device is equipped on, all electric components are CE certified.

4) All the Double Deck Hydraulic Car Lifts are passed 1.2 times loading test before leaving factory.



Production pictures:

3T 2.5M Double Deck Hydraulic Car Lifts 1 3T 2.5M Double Deck Hydraulic Car Lifts 2



3T 2.5M Double Deck Hydraulic Car Lifts 3 3T 2.5M Double Deck Hydraulic Car Lifts 4


CE Certificate:


3T 2.5M Double Deck Hydraulic Car Lifts 5



Our service:



1) We can design the Double Deck Hydraulic Car Lifts as per your requirement.
2) The Double Deck Hydraulic Car Lifts will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
