12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods

Name: 12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods
Brand: SDLIFT Or OEM
SKU: SJG12-6
Price: 7800 USD
Availability: InStock
Rating: 4.8 (154 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG12-6

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD7800- USD21800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 30 days after deposit

Supply Ability: 1200units per year

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                material handling lifts, hydraulic lift platform, 12T Double Scissor Lift Table


Application:	Double Scissor Lift Table Hydraulic Goods Lift Platform	Load Capacity:	12000kgs
Lift Height:	6000mm	Work Platformr:	Anti-skid Checkered Plate
Safe Device:	Explosion-Proof Lock Valve	Control Mode:	Control Box, Upper Control, 2 Remote

Application:	Double Scissor Lift Table Hydraulic Goods Lift Platform
Load Capacity:	12000kgs
Lift Height:	6000mm
Work Platformr:	Anti-skid Checkered Plate
Safe Device:	Explosion-Proof Lock Valve
Control Mode:	Control Box, Upper Control, 2 Remote

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods

Double Scissor Lift Table Hydraulic goods lift platform with CE

· Parameters:

Load capacity: 12000kg

Lift height: 6000mm

Platform size: 5800mm x 2800mm

Power: 380v/50hz/3ph/7.5kw

· Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/7.5Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box, 1 hand controller, 2 remotes

· Products in our factory:

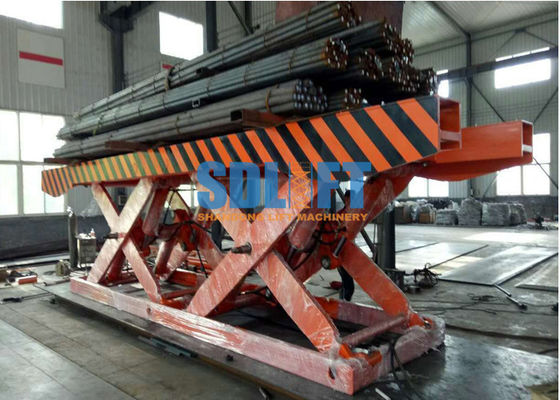

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods 0

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods 2

· The frequent models we supplied for our clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG0.3-2	0.3T	1.5m x 1.5m	2m	400mm	220V, 240V, 380V or 400V
SJG0.5-3	0.5T	2m x 1.8m	3m	500mm	220V, 240V, 380V or 400V
SJG1-4.5	1T	2.1m x 1.5m	4.5m	650mm	220V, 240V, 380V or 400V
SJG1.5-4	1.5T	2.2m x 1.6m	4m	600mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The Double Scissor Lift Table Hydraulic goods lift platform can be customized as your detailed size.

· Service:

1) All double scissor lift table must be 1.2 times tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.

· CE Certificate:

· Package and Loading into container:

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods 5

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods 6

12T Double Scissor Lift Table , Stationary Hydraulic Lift Platform For Goods 7
