Product Details:

Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG3-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: USD7800- USD15800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1200 units per year
Get Best Price Contact Now

Detail Information

Usage: Basement Stackable Car Parking System Control Method: 2 Remotes, 1 Control Box, 1 Upper Control
Platform Size: 5800x2800mm Lift Capacity: 3000kgs
Lift Height: 3000mm Color: Grey, Red, Blue Or As Your Request
High Light:

3000mm Double Deck Car Parking System

,

5.5kw Double Deck Car Parking System

,

3000kgs double parking car lift

Product Description

5.5kw 3000mm Hydraulic Double Deck Car Parking System

3t 3m Hydraulic Double Deck Car Lift for Home Garage Basement Car Parking Lift





Parameters:



1) Load capacity: 3000kgs (lower platform)
                          3000kgs (upper platform)
2) Platform size: 5.8m x 2.8m (lower platform)
                         5.8m x 2.8m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001





Advantages:



1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

2) The limit switch system helps Hydraulic parking Car Lifts to stop at accurate position.

3) Electricity leakage protection device is equipped on, all electric components are CE certified.

4) All the Hydraulic Car Parking systems are passed 1.2 times loading test before leaving factory.

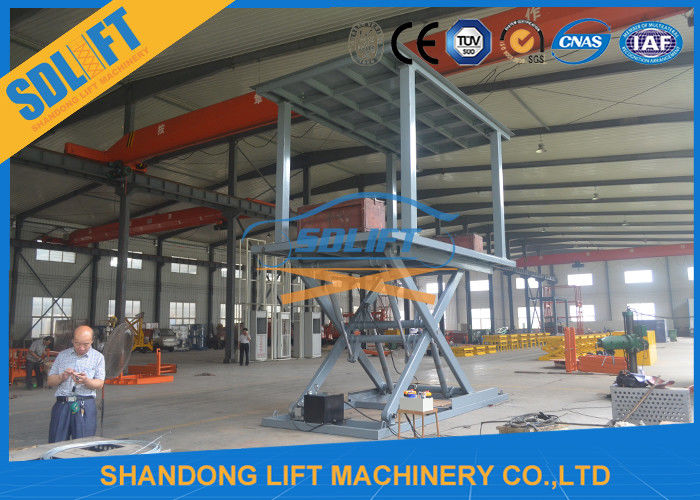

Production pictures:



5.5kw 3000mm Hydraulic Double Deck Car Parking System 05.5kw 3000mm Hydraulic Double Deck Car Parking System 15.5kw 3000mm Hydraulic Double Deck Car Parking System 2




Product List:



MODEL LOAD CAPACITY PLATFORM SIZE LIFT HEIGHT PIT DEPTH POWER
SJG2.5-3 2.5T 5.2m x 2.6m 3m 750mm 220V, 240V, 380V or 400V
SJG2-6.5 2T 5.2m x 2.8m 6.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-3.5 2.5T 5.2m x 2.6m 3.5m 800mm 220V, 240V, 380V or 400V
SJG2.5-5 2.5T 5.6m x 3m 5m 800mm 220V, 240V, 380V or 400V
SJG3-2.5 3T 5m x 2.3m 2.5m 750mm 220V, 240V, 380V or 400V
SJG3-3 3T 5.2m x 2.6m 3m 800mm 220V, 240V, 380V or 400V
SJG3-3.5 3T 5.6m x 2.7m 3.5m 800mm 220V, 240V, 380V or 400V
SJG5-10 5T 4.5m x 2.5m 10m 1150mm 220V, 240V, 380V or 400V
SJG8-2.5 8T 6.5m x 4.5m 2.5m 850mm 220V, 240V, 380V or 400V
SJG12-3 12T 5.5m x 2.8m 3m 950mm 220V, 240V, 380V or 400V
SJG15-4.5 15T 8m x 2.2m 4.5m 1150mm 220V, 240V, 380V or 400V
SJG20-5 20T 6m x 3m 5m 1200mm 220V, 240V, 380V or 400V





CE Certificate:


5.5kw 3000mm Hydraulic Double Deck Car Parking System 3





Our service:



1) We can design the Hydraulic Car parking system as per your requirement.
2) The Hydraulic Car parking system will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
