6T 3M Mechanical Parking System for Garage Portable

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG6-3

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD12800- USD16800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 20 work days

Supply Ability: 1200 units per year

Get Best Price
Highlight:

3M Height Mechanical Parking System

,

6000kgs Load Mechanical Parking System

Load Capacity:
6000kgs
Lift Height:
3m
Control:
2 Remotes
Color:
Black, Grey, Blue, Or As Your Optional
Lift System:
Hydraulic System
Material:
High Strength Manganese Steel
Load Capacity:
6000kgs
Lift Height:
3m
Control:
2 Remotes
Color:
Black, Grey, Blue, Or As Your Optional
Lift System:
Hydraulic System
Material:
High Strength Manganese Steel

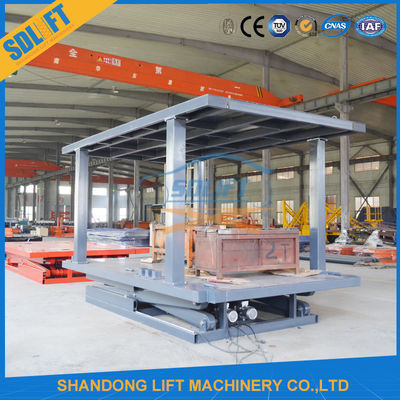

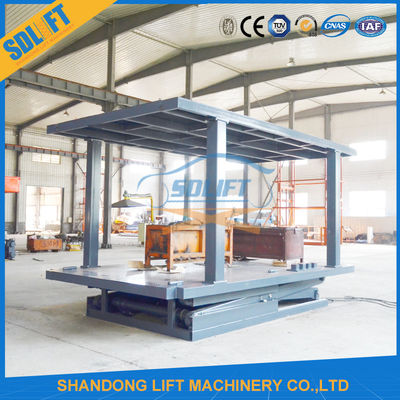

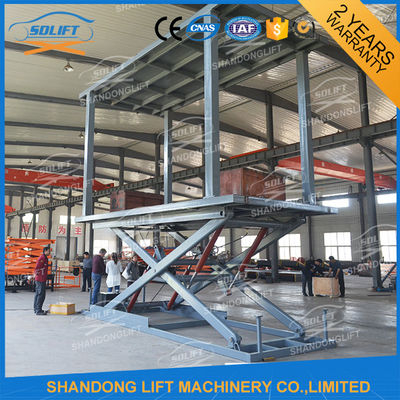

6T 3M Mechanical Parking System for Garage Portable

6T 3M Mechanical Parking System Garage Portable Car Lift Equipment



Mechanical Parking System Garage Portable Car Lift Equipment with CE



Parameters:



1) Load capacity: 3000kgs (lower platform)
                            3000kgs (upper platform)
2) Platform size: 5.6m x 2.8m (lower platform)
                           5.6m x 2.8m (upper platform)
3) Lift height: 3m
4) Height between platforms: 3m
5) Power: 380v/50hz/3ph/5.5kw
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001



Application:



The Mechanical Parking System Garage Portable Car Lift Equipment can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor.

Operation is easy. There are 2 sets control system installed on the Mechanical Parking System Garage Portable Car Lift Equipment , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform, and 2 remotes.



Configuration:



1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/5.5Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Safety:


1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The limit switch system helps Mechanical Parking System Garage Portable Car Lift Equipment to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Mechanical Parking System Portable Car Lift Equipment are passed 1.2 times loading test before leaving factory.



The models we supplied for clients:



MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

600mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

700mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

700mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

750mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

850mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

950mm

220V, 240V, 380V or 400V

 The Mechanical Parking System Portable Car Lift Equipment can be customized as your detailed size.



The workshops:



6T 3M Mechanical Parking System for Garage Portable 0





CE Certificate:


6T 3M Mechanical Parking System for Garage Portable 1



Our service:



1) We can design the Hydraulic Car lift as per your requirement.
2) The Hydraulic Car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
