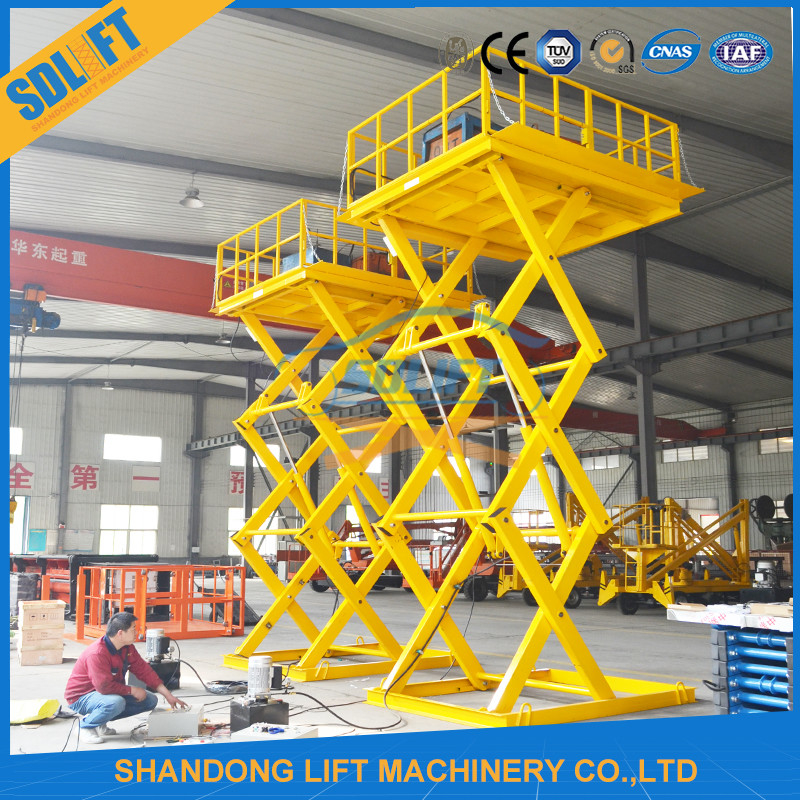

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE

Name: Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE
Brand: SDLIFT Or OEM
SKU: SJG2-3
Price: 4800 USD
Availability: InStock
Rating: 4.6 (101 reviews)

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG2-3

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD4800- USD7800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 30 days

Payment Terms: T/T

Supply Ability: 1200 units per year

Get Best Price

Product Details

Product Description

High Light:
                                                                                                                                                                                                                                                Galvanizing Stationary Hydraulic Scissor Lift, 2000kgs Stationary Hydraulic Scissor Lift, Cargo Elevator Hydraulic Scissor Lift


Application:	Hydraulic Scissor Lift Cargo Elevator	Safety Trip Bar:	Under Work Platform
Load Weight:	2000kgs	Lift Height:	3000mm
Safe Device:	Explosion-Proof Lock Valve	Certificate:	CE ISO9001

Application:	Hydraulic Scissor Lift Cargo Elevator
Safety Trip Bar:	Under Work Platform
Load Weight:	2000kgs
Lift Height:	3000mm
Safe Device:	Explosion-Proof Lock Valve
Certificate:	CE ISO9001

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE

galvanizing stationary hydraulic scissor lift cargo elevator with CE

· Parameters:

Load capacity: 2000kg

Lift height: 3000mm

Platform size: 2000mm x 1500mm

Power: 380v/50hz/3ph/3.0kw

· Finished products in our factory:

· Configuration:

1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.

7) Hydraulic pipe: high pressure pipe with double expanded metal protected

8) Hydraulic oil: summer 46#, winter 32#

9) Controller: 1 control box, 1 hand controller, 2 remotes

· Sample parts showing:

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE 0

· The frequent models we supplied for our clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG0.3-2	0.3T	1.5m x 1.5m	2m	400mm	220V, 240V, 380V or 400V
SJG0.5-3	0.5T	2m x 1.8m	3m	500mm	220V, 240V, 380V or 400V
SJG1-4.5	1T	2.1m x 1.5m	4.5m	650mm	220V, 240V, 380V or 400V
SJG1.5-4	1.5T	2.2m x 1.6m	4m	600mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The Freight Elevator Goods Lift can be customized as your detailed size.

· Service:

1) All hydraulic scissor lift cargo elevator must be 1.2 times tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.

· CE Certificate:

· Package and Loading into container:

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE 2

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE 3

Galvanizing Stationary Hydraulic Scissor Lift Cargo Elevator With CE 4
