Product Details:
|
| Application: | Material Handling Scissor Lift | Safe Device: | Explosion-Proof Lock Valve |
|---|---|---|---|
| Controls: | Control Box, Control Panel, Remotes | Lift Height: | 3000mm |
| Load Weight: | 1000kgs | Lift Speed: | 3-6m/min |
| High Light: | 1000kg stationary scissor lift table,material handling stationary scissor lift table,1000kg stationary hydraulic lift table |
||
· Parameters:
Load capacity: 1000kg
Lift height: 3000mm
Platform size: 2000mm x 2000mm
Power: 380v/50hz/3ph/3.0kw
· The frequent models we supplied for our clients:
|
MODEL
|
LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG0.3-2 | 0.3T | 1.5m x 1.5m | 2m | 400mm | 220V, 240V, 380V or 400V |
| SJG0.5-3 | 0.5T | 2m x 1.8m | 3m | 500mm | 220V, 240V, 380V or 400V |
| SJG1-4.5 | 1T | 2.1m x 1.5m | 4.5m | 650mm | 220V, 240V, 380V or 400V |
| SJG1.5-4 | 1.5T | 2.2m x 1.6m | 4m | 600mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
|
The hydraulic scissor table material handling scissor lift can be customized as your detailed size.
|
|||||
· Configuration:
1) Platform Material: rectangular tube + checkered anti-slip plate
2) Support scissors: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or as your request
4) Hydraulic cylinder: high precision wear-resisting cylinders with locking device for fall protection
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
· Service:
1) All machines sold must be tested before shipment, 100% quality.
2) 2 years warranty, with CE certification.
3) 24 hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free during warranty.
6) Professional design drawing can be designed and provided according to customer installation site.

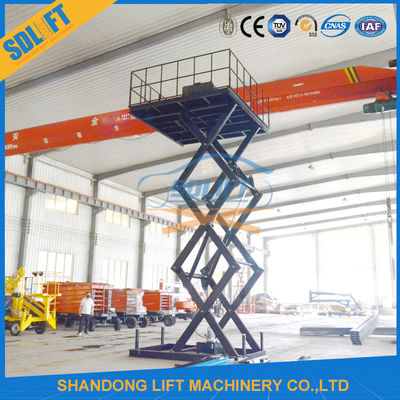

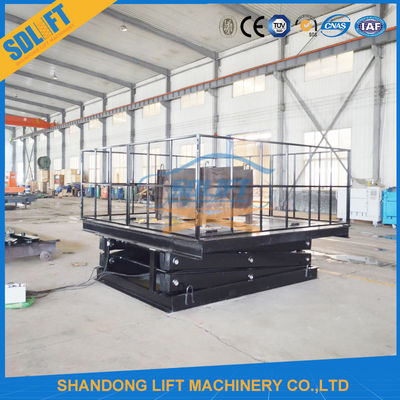

· Finished pictures in our factory:
· CE Certificate:
· Customers visiting in our factory:
