Product Details:
|
| Usage: | Car Storage Lifts Stackable Car Parking System | Controls: | 2 Remotes, 1 Control Box, 1 Upper Control |
|---|---|---|---|
| Load Capacity: | 3000kgs / 3000kgs | Lift Height: | 3500mm |
| Platform Size: | 5600mm X 2800mm | Safety Device: | Explosion Proof Lock Valve |
| High Light: | 3000kg car storage lifts,double deck stackable car storage lifts,double deck stackable car parking system |
||
Double deck car storage lifts stackable car parking system with CE
Application:
- The car storage lifts stackable car parking system can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the portable car parking system, 1 control box below, and 1 hand controller and 2 remotes.
Parameters:
1) Load capacity: 3000kgs (lower platform)
3000kgs (upper platform)
2) Platform size: 5.6m x 2.8m (lower platform)
5.6m x 2.8m (upper platform)
3) Lift height: 3.5m
4) Height between platforms: 3.5m
5) Power: 380v/50hz/3ph/5.5kw (or 220v)
6) Control system: 1 control box, 1 control panel, 2 remotes
7) Control buttons: up, down, stop, emergency
8) Safety device: explosion-proof lock valve
9) Standard: CE, ISO9001

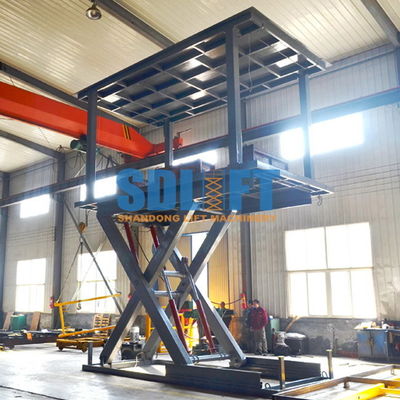

Production pictures:
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 100*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps car storage lifts stackable car parking system to stop at accurate position.
3) Electricity leakage protection device is equipped on, all electric components are CE certified.
4) All car storage lifts stackable car parking systems are passed 1.2 times loading test before leaving factory.
Product List:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
Loading into container in our factory:
CE Certificate:
Our service:
1) We can design car storage lifts stackable car parking system as per your requirement.
2) The car storage lifts stackable car parking system will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
