Product Details:
|
| Application: | Garage Car Parking Lift | Color: | Red, Grey, Yellow, Blue, Or As Your Optional |
|---|---|---|---|
| Load Capacity: | 2500kgs | Lift Height: | 5000mm |
| Lift System: | Hydraulic System | Voltage: | 220v /380v /415v/or Customized |

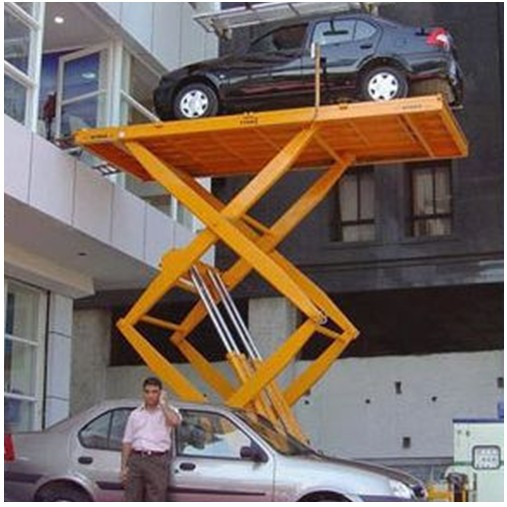

CE Certified Hydraulic System Underground Car Parking Lift Hydraulic Scissor Car Lift
Parameter:
1) load capacity : 2500kgs
2) platform size : 5.2m x 2.6m
3) travel height : 5m
4) structure : high-strength Manganese steel
5) power : 380v / or 220v / or 240v / or 400v
6) Installation : underground , into a pit
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/4.0Kw
4) High Precision Hydraulic Cylinder: 100*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform, 2 remotes
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the hydraulic scissor car lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic scissor car lifts are passed 1.2 times loading test before leaving factory.
Application:
The hydraulic scissor car lifts car can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the hydraulic scissor car lifts , 2 remotes, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
Product List:
| MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
| SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
| SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
| SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
| SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
| SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
| SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
| SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
| SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
| SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
Our workshops:
Loading car lifts into container in our factory:
Certificates:
Customers visiting:
