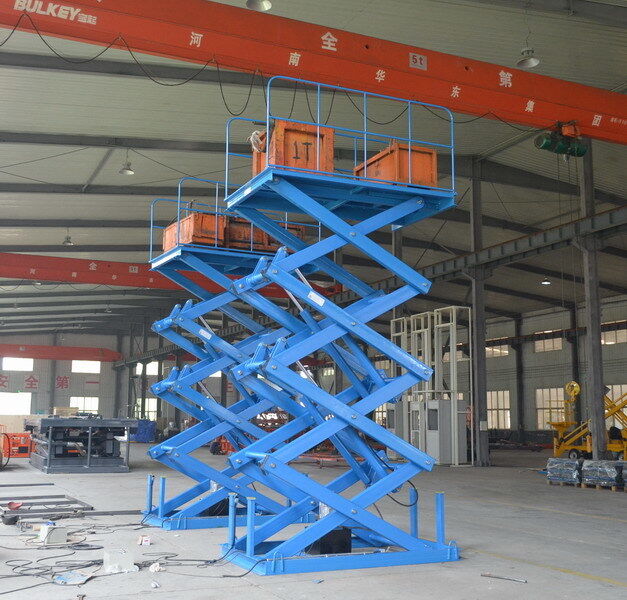

Hydraulic scissor lift table for material handling and industrial applications

Product Details

Place of Origin: CHINA

Brand Name: SDLIFT

Certification: CE, TUV, ISO

Model Number: SJG

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD3000-6000

Packaging Details: Wooden or Customized packaging

Delivery Time: within 30 days

Payment Terms: 50% deposit

Supply Ability: 1200 units per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                stationary hydraulic scissor lift table, industrial scissor lift for material handling, heavy-duty hydraulic lift table


Product Name:	Stationary Hydraulic Scissor Lift	Power Supply:	AC/DC
Control System:	Manual/Electric/Remote Control	Load Capacity:	1 - 20 Tons
Warranty:	2 Years	Surface Treatment:	Painting/Galvanizing
Material:	Q235 Steel	Platform Size:	Customized

Product Name:	Stationary Hydraulic Scissor Lift
Power Supply:	AC/DC
Control System:	Manual/Electric/Remote Control
Load Capacity:	1 - 20 Tons
Warranty:	2 Years
Surface Treatment:	Painting/Galvanizing
Material:	Q235 Steel
Platform Size:	Customized

Hydraulic scissor lift table for material handling and industrial applications

Application:

- The hydraulic scissor lift tables are convenient, efficient and safe ways to transport cargo from one floor to another floor.

- Operation is easy. There are 3 sets control system installed on the scissor lift tables, 1 control box below, 1 upper controller, and 2 remotes that can be operated beside work platform.

Product parameters:

1) load capacity : 2000kgs
2) platform size : 2m x 1.5m
3) travel height : 4m
4) structure : high-strength Manganese steel
5) power : 380v/3ph/50hz/3.0kw

6) Installation : underground , into a pit

Safety:

1) The scissor lift table equipped with anti-skid plate to prevent slipping for safe.

2) The guardrails are equipped to guarante safety of the cargo.

3) The scissor lift table has hydraulic overload protective organization to ensure the lift will not work when the load beyond its rated load capacity.

4) The scissor lift equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the lower position.

Factory pictures:

Hydraulic scissor lift table for material handling and industrial applications 0

The models we supplied for clients:

MODEL	LOAD CAPACITY	PLATFORM SIZE	LIFT HEIGHT	PIT DEPTH	POWER
SJG0.3-2	0.3T	1.5m x 1.5m	2m	400mm	220V, 240V, 380V or 400V
SJG0.5-3	0.5T	2m x 1.8m	3m	500mm	220V, 240V, 380V or 400V
SJG1-4.5	1T	2.1m x 1.5m	4.5m	650mm	220V, 240V, 380V or 400V
SJG1.5-4	1.5T	2.2m x 1.6m	4m	600mm	220V, 240V, 380V or 400V
SJG2-6.5	2T	5.2m x 2.8m	6.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-3	2.5T	5.2m x 2.6m	3m	750mm	220V, 240V, 380V or 400V
SJG2.5-3.5	2.5T	5.2m x 2.6m	3.5m	800mm	220V, 240V, 380V or 400V
SJG2.5-5	2.5T	5.6m x 3m	5m	800mm	220V, 240V, 380V or 400V
SJG3-2.5	3T	5m x 2.3m	2.5m	750mm	220V, 240V, 380V or 400V
SJG3-3	3T	5.2m x 2.6m	3m	800mm	220V, 240V, 380V or 400V
SJG3-3.5	3T	5.6m x 2.7m	3.5m	800mm	220V, 240V, 380V or 400V
SJG5-10	5T	4.5m x 2.5m	10m	1150mm	220V, 240V, 380V or 400V
SJG8-2.5	8T	6.5m x 4.5m	2.5m	850mm	220V, 240V, 380V or 400V
SJG12-3	12T	5.5m x 2.8m	3m	950mm	220V, 240V, 380V or 400V
SJG15-4.5	15T	8m x 2.2m	4.5m	1150mm	220V, 240V, 380V or 400V
SJG20-5	20T	6m x 3m	5m	1200mm	220V, 240V, 380V or 400V
The hydraulic scissor lift can be customized as your detailed size.

The parts showing:

Hydraulic scissor lift table for material handling and industrial applications 4

The customers visiting:

Hydraulic scissor lift table for material handling and industrial applications 5

Our workshops:

Hydraulic scissor lift table for material handling and industrial applications 6

Loading into containers in our factory:

Hydraulic scissor lift table for material handling and industrial applications 7

CE certificate :

Hydraulic scissor lift table for material handling and industrial applications 8

Hydraulic scissor lift table for material handling and industrial applications 10

Hydraulic scissor lift table for material handling and industrial applications 11
