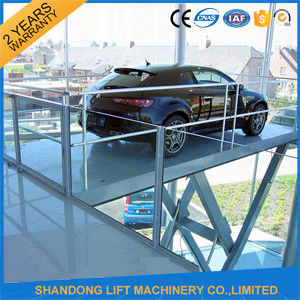

Residential Car Lifting Hydraulic Garage Car Elevator For Home Garage CE ISO SGS

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3.5-3.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD7800 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

vehicle scissor lift

,

automotive scissor lift

Lift Height:
1.5m-12m (as Request)
Load Capacity:
1ton-20ton (as Request)
Application:
Garage Car Scissor Lift
Motor:
From Italy Or Chinese Famous Brand
Safe Device:
Explosion-Proof Lock Valve
Lift System:
Hydraulic System
Power Supply:
220V/240V/380V/415V (as Request)
Material:
High Strength Manganese Steel
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Lift Height:
1.5m-12m (as Request)
Load Capacity:
1ton-20ton (as Request)
Application:
Garage Car Scissor Lift
Motor:
From Italy Or Chinese Famous Brand
Safe Device:
Explosion-Proof Lock Valve
Lift System:
Hydraulic System
Power Supply:
220V/240V/380V/415V (as Request)
Material:
High Strength Manganese Steel
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Residential Car Lifting Hydraulic Garage Car Elevator For Home Garage CE ISO SGS

Elevator Car Rrame Hydraulic Garage Car Elevator For Car Parking with CE



Application:

The Elevator Car Rrame Hydraulic Garage Car Elevator For Car Parking can be used to lift car with different levels, suitable for car parking between stairs, from basement to first floor, to second floor, or to third floor.

Operation is easy. There are 2 sets control system installed on the Elevator Car Rrame Hydraulic Garage Car Elevator For Car Parking , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



The models we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

700mm

220V, 240V, 380V or 400V

SJG2-6.5

2T

5.2m x 2.8m

6.5m

750mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

800mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

750mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

800mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG5-10

5T

4.5m x 2.5m

10m

1150mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

850mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

950mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

1050mm

220V, 240V, 380V or 400V

SJG20-5

20T

6m x 3m

5m

950mm

220V, 240V, 380V or 400V

The hydraulic car scissor lift car can be customized as your detailed size.



Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Car Lift for sale Hydraulic Car Scissor Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Car Lift for sale Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.

Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 100*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Packaging & Shipping:

Residential Car Lifting Hydraulic Garage Car Elevator For Home Garage CE ISO SGS 0The Certificates:

Residential Car Lifting Hydraulic Garage Car Elevator For Home Garage CE ISO SGS 1

Our services:

1) The Elevator Car Rrame Hydraulic Garage Car Elevator For Car Parking can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
