Product Details
Place of Origin: China
Brand Name: SDLIFT Or OEM
Certification: CE ISO SGS
Model Number: SJG4.5-3
Payment & Shipping Terms
Minimum Order Quantity: 1 UNIT
Price: USD3980- USD7800 / UNIT
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days
Supply Ability: 3600units per year
Lift Height: |
2m-15m (as Request) |
Load Capacity: |
2ton-15ton (as Request) |
Application: |
Auto Car Lift Table Hydraulic Car Scissor Lift |
Motor: |
From Italy Or Chinese Famous Brand |
Safe Device: |
Explosion-Proof Lock Valve |
Lift System: |
Hydraulic System |
Power Supply: |
220V/240V/380V/415V (as Request) |
Material: |
High Strength Manganese Steel |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Lift Height: |
2m-15m (as Request) |
Load Capacity: |
2ton-15ton (as Request) |
Application: |
Auto Car Lift Table Hydraulic Car Scissor Lift |
Motor: |
From Italy Or Chinese Famous Brand |
Safe Device: |
Explosion-Proof Lock Valve |
Lift System: |
Hydraulic System |
Power Supply: |
220V/240V/380V/415V (as Request) |
Material: |
High Strength Manganese Steel |
Color: |
Red, Grey, Yellow, Blue, Or As Your Optional |
Auto Car Lift Table Hydraulic Car Scissor Lift with CE
Application:
The Auto Car Lift Table Hydraulic Car Scissor Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
Operation is easy. There are 2 sets control system installed on the Auto Car Lift Table Hydraulic Car Scissor Lift , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
The models we supplied for clients:
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
700mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
750mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1050mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
950mm |
220V, 240V, 380V or 400V |
The hydraulic car scissor lift car can be customized as your detailed size. |
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/4.0Kw
4) High Precision Hydraulic Cylinder: 100*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Auto Car Lift Table Hydraulic Car Scissor Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Auto Car Lift Table Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.

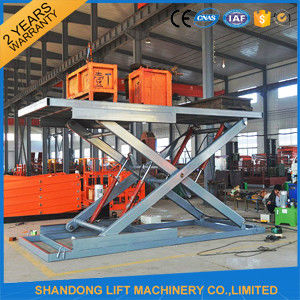

The products showing:
The Certificates:
Our services:
1) The Auto Car Lift Table Hydraulic Car Scissor Lift can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
