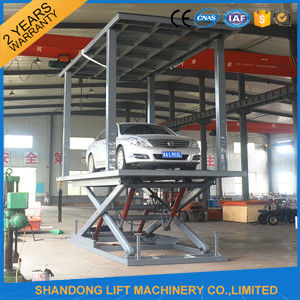

Car Lift Ramps Double Deck Car Parking System with Electricity Leakage Protection Device

Product Details

Place of Origin: China

Brand Name: SDLIFT Or OEM

Certification: CE ISO SGS

Model Number: SJG3.5-3.5

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: USD3980- USD8980 / UNIT

Packaging Details: Iron case or plywood case package

Delivery Time: 5-20 work days

Supply Ability: 3600units per year

Get Best Price
Highlight:

automated car parking system

,

garage car elevator

Application:
Car Lift Ramps Double Deck Car Parking Lift Machine To Lift The Cars
Motor:
From Italy Or Chinese Famous Brand
Safe Device:
Explosion-Proof Lock Valve
Lift Height:
1.5m-12m (as Request)
Load Capacity:
1ton-20ton (as Request)
Material:
High Strength Manganese Steel
Lift System:
Hydraulic System
Power Supply:
220V/240V/380V/415V (as Request)
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Application:
Car Lift Ramps Double Deck Car Parking Lift Machine To Lift The Cars
Motor:
From Italy Or Chinese Famous Brand
Safe Device:
Explosion-Proof Lock Valve
Lift Height:
1.5m-12m (as Request)
Load Capacity:
1ton-20ton (as Request)
Material:
High Strength Manganese Steel
Lift System:
Hydraulic System
Power Supply:
220V/240V/380V/415V (as Request)
Color:
Red, Grey, Yellow, Blue, Or As Your Optional
Car Lift Ramps Double Deck Car Parking System with Electricity Leakage Protection Device

CE Car Lift Ramps Double Deck Car Parking Lift Machine To Lift The Cars



Application:

The Car Lift Ramps Double Deck Car Parking Lift Machine To Lift The Cars can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor.

Operation is easy. There are 2 sets control system installed on the Car Lift Ramps Double Deck Car Parking Lift Machine To Lift The Cars , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



Configuration:

1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.

3) Hydraulic system: 380V/4.0Kw

4) High Precision Hydraulic Cylinder: 110*4sets

5) Piston Rod: 70*4 hard chromium plating surface.

6) High-pressure oil pump

7) Hydraulic oil: summer 46#, winter 32#

8) Controller: 1 control box below, 1 control panel above platform



Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Double Parking Car Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Double Parking Car Lift are passed 1.2 times loading test before leaving factory.



The models we supplied for clients:





MODEL

LOAD CAPACITY

PLATFORM SIZE

LIFT HEIGHT

PIT DEPTH

POWER

SJG2.5-3

2.5T

5.2m x 2.6m

3m

600mm

220V, 240V, 380V or 400V

SJG2.5-3.5

2.5T

5.2m x 2.6m

3.5m

700mm

220V, 240V, 380V or 400V

SJG2.5-5

2.5T

5.6m x 3m

5m

750mm

220V, 240V, 380V or 400V

SJG3-2.5

3T

5m x 2.3m

2.5m

700mm

220V, 240V, 380V or 400V

SJG3-3

3T

5.2m x 2.6m

3m

750mm

220V, 240V, 380V or 400V

SJG3-3.5

3T

5.6m x 2.7m

3.5m

800mm

220V, 240V, 380V or 400V

SJG8-2.5

8T

6.5m x 4.5m

2.5m

750mm

220V, 240V, 380V or 400V

SJG12-3

12T

5.5m x 2.8m

3m

850mm

220V, 240V, 380V or 400V

SJG15-4.5

15T

8m x 2.2m

4.5m

950mm

220V, 240V, 380V or 400V

 The double deck car parking lift car lift equipment can be customized as your detailed size.





The workshops:Car Lift Ramps Double Deck Car Parking System with Electricity Leakage Protection Device 0The Certificates:

Car Lift Ramps Double Deck Car Parking System with Electricity Leakage Protection Device 1

Our services:

1) The Double Parking Car Lift Portable Car lift Equipment can be done as your request

2) Shipment can be arranged from our port to your destination port.

3) Operation video can be sent to you if needed.

4) English manual for car lift installation , using and maintenance.

5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
