|Type:||Scissor Lift||Material:||High Strength Manganese Steel|
|Feature:||Easy Operation Safety Convenience||Platform:||Anti-skid Checkered Plate|
|Lift Drive / Actuation:||Hydraulic + Electric Control||Motor:||Customer Required Brand Or Chinese Famous Brand|
|Package:||Iron Case Or Plywood Case Package||Safety Device:||Explosion Proof Lock Valve, Emergency|
|Warranty:||24 Months||Color:||Orange Bule Grey Black Etc.|
|Voltage:||110v 220v 240v 380v Optional|
material handling lifts,
hydraulic lift platform

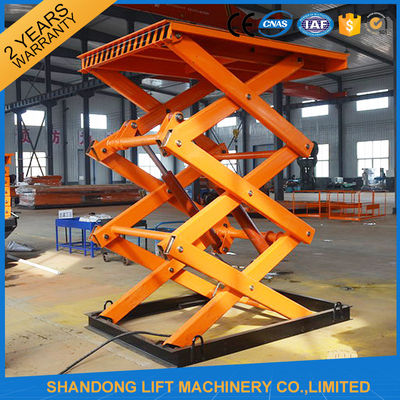

Electric Pit Fixed Cargo Stationary Hydraulic Scissor Lift with 2 Years Warranty:
1) Platform Material:120mm*60mm rectangular tube +4mm checkered anti-slip plate
2) Support scissors: 200mm*100mm*8mm high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or 220v or as your request
4) Hydraulic cylinder: 80*4sets high precision wear-resisting cylinders with locking device for fall protection
5) High-pressure oil pump: from Italy or Chinese famous brand.
7) Hydraulic pipe: high pressure pipe with double expanded metal protected
8) Hydraulic oil: summer 46#, winter 32#
9) Controller: 1 control box below, 1 hand controller above platform
|The stationary hydraulic scissor lift can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.|
|Operation is easy. There are 2 sets control system installed on the stationary hydraulic scissor lift, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.|
|The stationary hydraulic scissor lift can be customized as your detailed size.|
|Explosion-proof lock valve to avoid a sudden drop if emergency occurs.|
|The safety rails to guarantee safety of the goods above lift platform.|
|Equipped 4 guide rails, to ensure the stationary hydraulic scissor lift runs more smoothly and steadily.|
|The limit switch system helps the stationary hydraulic scissor lift to stop at accurate position.|
|Electricity leakage protection device is equipped on, all electric components are CE certified.|
|All the stationary hydraulic scissor lift are passed 1.2 times loading test before leaving factory.|
The customers visiting:
We have supplied more than 20 countries for our customers from U.S.A., Canada, France, Germany, Switzerland, England, Australia, New Zealand, Singapore, Bahrain, U.A.E., India, Tanzania, Belgium, Etc.
Most of our products with CE, and we have been verified by SGS.
1) We can design the customerized stationary hydraulic scissor lift as per your requirement.
2) The most suitable stationary hydraulic scissor lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
