Product Details:
|
| Application: | Mechanical Car Lift Multi-level Car Storage Car Parking Lift System Car Hoist Lift | Work Platform: | Anti-skid Thick Platform |
|---|---|---|---|
| Platform Size: | Customized | Safe Device: | Explosion-Proof Lock Valve |
| Motor: | From Italy Or Chinese Famous Brand | Material: | High Strength Manganese Steel |
| Color: | Red, Grey, Yellow, Blue, Or As Your Optional | Power Supply: | 220V/240V/380V/415V (as Request) |
| OEM: | Yes | ||
| High Light: | stacker car parking system,garage car elevator |
||

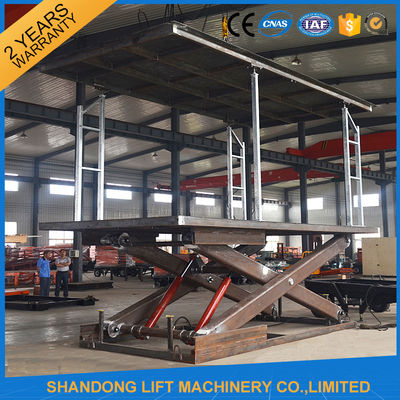

Mechanical Car Lift Multi-level Car Storage Car Parking Lift System
Car Hoist Lift with 2 Years Warranty
Application:
The Mechanical Car Lift Multi-level Car Storage Car Parking Lift System Car Hoist Lift is a widely used car lift equipment. It's scissor structure, make the lifting platform stability , wide platform size and high load capacity, with higher lifting height . It makes a lot of work more efficient and more security. It is easy to park your car in ground garage with more efficient and more security.
Safety:
1) The platform equipped with antiskid plate to prevent slipping, it is enough safe when it works.
2) The work table would equipped the guardrail to guarantee the safety.
3) The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4) The machine equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
Advantages:
Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection locking device to avoid falling for the Mechanical Car Lift Multi-level Car Storage Car Parking Lift System Car Hoist Lift .
The models we supplied for clients:
|
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
|
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
600mm |
220V, 240V, 380V or 400V |
|
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
700mm |
220V, 240V, 380V or 400V |
|
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
700mm |
220V, 240V, 380V or 400V |
|
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
750mm |
220V, 240V, 380V or 400V |
|
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
|
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
|
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
850mm |
220V, 240V, 380V or 400V |
|
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
950mm |
220V, 240V, 380V or 400V |
|
The Mechanical Car Lift Multi-level Car Storage Car Parking Lift System Car Hoist Lift can be customized as your detailed size. |
|||||
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*15mm high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
The products:
Parts showing:
The Certificates:
Our services:
1) The Mechanical Car Lift Multi-level Car Storage Car Parking Lift System Car Hoist Lift can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation , using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
