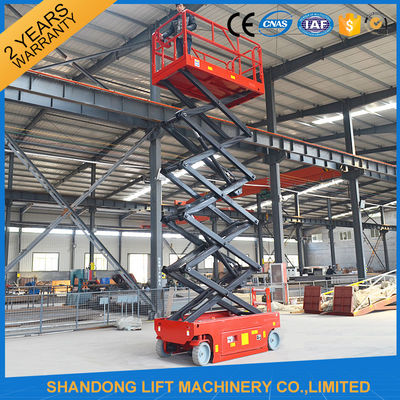

    6m Electric Mini Scissor Lift Self Propelled Elevating Work Platforms CE ISO9001 SGS

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE ISO9001 SGS BV
    Model Number: SJY0.3-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD3980 - 12800 / Set
    Packaging Details: Iron case or plywood case package
    Delivery Time: 5-20 work days after deposit
    Supply Ability: 3600 units per year
    Get Best Price Contact Now

    Detail Information

    Warranty: 24 Months Lifting Height: 4m To 14m
    Work Platform: Anti-skid Steel Plate Advantage: Highly Automatic Agile Movement
    Load Capacity: 300kg / 1000kg Grade: First Class
    Lift Drive: Hydraulic And Electric Motor Color: Blue, Red, Grey, Orange Or Optional
    Application: Aerial Platform Lift Self Propelled Aerial Work Platform
    High Light:

    self-propelled scissor lifts

    ,

    mobile elevated work platform

    Product Description

    6m Electric Mini Scissor Lift Self Propelled Elevating Work Platforms CE ISO9001 SGS

    Electric mini scissor lift self propelled personnel scissor lift with CE

    With 2 Years Warranty



    Application:

    The electric mini scissor lift self propelled personnel scissor lift can automatically fast and slow walk and turn in different work conditions , which do not need artificial traction, do not need external power supply , and move flexibly and conveniently. It makes aerial work more convenient and efficient.

    It's widely used for aerial installation and maintenance without power supply, with smooth working

     grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary, bus and railway stations, hotels, and airports.



    Advantage:

    1. Load weight: 300kg 500kg 1000kg

    2. lift height: 4m 6m 8m 10m 12m 14m

    3. Self moving, without outriggers.

    4. One person can control the electric mini scissor lift self propelled personnel scissor lift up down stop and move

    5. Automatic pothole protection system

    6. Slide-out battery trays
    7. All motion alarm
    8. Roll-out extension platform

    9. Grooves on underframe for easy transportation
    10. LED battery condition indicator
    11. Fault diagnostic system
    12. Tilt level sensor
    13. Manual platform lowering valve for emergency

    14. Solid non-marking tires



    Parts Showing:

    6m Electric Mini Scissor Lift Self Propelled Elevating Work Platforms CE ISO9001 SGS 0



    Factory products pictures:

    6m Electric Mini Scissor Lift Self Propelled Elevating Work Platforms CE ISO9001 SGS 1

    6m Electric Mini Scissor Lift Self Propelled Elevating Work Platforms CE ISO9001 SGS 2



    Technical parameters:



    Model No.

    SJG0.3-6

    SJG0.3-8

    SJG0.3-10

    SJG0.3-12

    Dimensions:

    Max. Platform Height

    6m

    8m

    10m

    11.8m

    Max. Working Height

    8m

    10m

    12m

    13.8m

    Height ( platform stowed )

    2.03m

    2.13m

    2.33m

    2.53m

    Height ( guardrail fold stowed )

    1.58m

    1.68m

    1.88m

    2.08m

    Platform Size

    2.3 m * 1.15m

    2.3 m * 1.15m

    2.3 m * 1.15m

    2.3 m * 1.15m

    Platform Extend Length

    0.8m

    0.8m

    0.8m

    0.8m

    Ground Clearance

    0.1m

    0.1m

    0.1m

    0.1m

    Productivity:

    Load Capacity

    300kg

    300kg

    300kg

    300kg

    Load capacity on extension deck

    100kg

    100kg

    100kg

    100kg

    Drive Speed(Platform Stowed)

    0 - 3.2km/h

    0 - 3.2km/h

    0 - 3.2km/h

    0 - 3.2km/h

    Drive Speed(Platform Elevated)

    0 - 0.8km/h

    0 - 0.8km/h

    0 - 0.8km/h

    0 - 0.8km/h

    Turning Radius

    2.35m

    2.35m

    2.35m

    2.35m

    Grade-ability

    25%

    25%

    25%

    25%

    Drives

    Dual front wheel

    Dual front wheel

    Dual front wheel

    Dual front wheel

    Brakes

    Dual rear wheel

    Dual rear wheel

    Dual rear wheel

    Dual rear wheel

    Tire size

    0.305 * 0.125m

    0.305 * 0.125m

    0.305 * 0.125m

    0.305 * 0.125m

    Power:

    Batteries

    24V DC (4 x 6V 225Ah batteries)

    24V DC (4 x 6V 225Ah batteries)

    24V DC (4 x 6V 225Ah batteries)

    24V DC (4 x 6V 225Ah batteries)

    Motor power

    3KW

    3KW

    3KW

    3KW

    Standards Compliance

     CE / ISO

     CE / ISO

     CE / ISO

     CE / ISO

    Overall Net Weight

    2150kg

    2350kg

    2550kg

    2950kg





























































    Our services:

    1) We can design the electric mini scissor lift self propelled personnel scissor lift as per your requirement.

    2) The most suitable battery power self propelled scissor lift will be recommended to you once we get your requirement.

    3) Shipment can be arranged from our port to your destination port.

    4) Operation video can be sent to you if needed.

    5) User-friendly English manual for machine installation using and maintenance.

    6) 2 years warranty for whole machine without man-made faults

    7) We will send you parts for free if there are any non-human factors faults during warranty time.

    8) Supply 24-hours technical assistance by email, telephone or other communication online.

    9) Engineers are available to your country if necessary.
