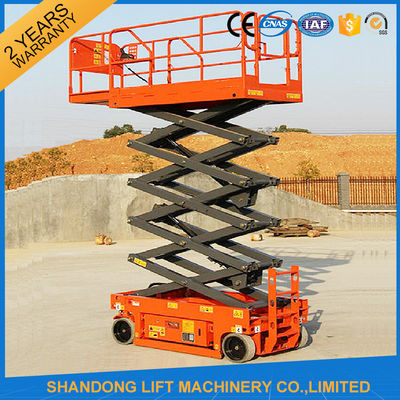

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley
Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley
Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley

Large Image :  Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley

Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO9001 SGS BV
Model Number: SJY0.3-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD3980 - 12800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 3600 units per year

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley

Description
Travel Speed (stowed): 3.2km/h Lifting Height: 4m To 14m
Load Capacity: 300kg / 1000kg Grade Ability: 25%
Warranty: 24 Months Grade: First Class
Lift Drive: Hydraulic And Electric Motor Color: Blue, Red, Grey, Orange Or Optional
Application: Small Platform Scissor Lift China Mini Scissor Lift Table
High Light:

aerial lift scaffolding

,

mobile elevated work platform

Trailer Scissor Lift Scaffolding Battery Powered Scissor Lift Platform

with CE With 2 Years Warranty



Application:

The Trailer Scissor Lift Scaffolding Battery Powered Scissor Lift Platform can automatically fast and slow walk and turn in different work conditions , which do not need artificial traction, do not need external power supply , and move flexibly and conveniently. It makes aerial work more convenient and efficient.
It's widely used for aerial installation and maintenance without power supply, with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary, bus and railway stations, hotels, and airports.



Lift Drawing Shows:

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley 0

Technical parameters:



Model No.

SJG0.3-6

SJG0.3-8

SJG0.3-10

SJG0.3-12

Dimensions:

Max. Platform Height

6m

8m

10m

11.8m

Max. Working Height

8m

10m

12m

13.8m

Height ( platform stowed )

2.03m

2.13m

2.33m

2.53m

Height ( guardrail fold stowed )

1.58m

1.68m

1.88m

2.08m

Platform Size

2.3 m * 1.15m

2.3 m * 1.15m

2.3 m * 1.15m

2.3 m * 1.15m

Platform Extend Length

0.8m

0.8m

0.8m

0.8m

Ground Clearance

0.1m

0.1m

0.1m

0.1m

Productivity:

Load Capacity

300kg

300kg

300kg

300kg

Load capacity on extension deck

100kg

100kg

100kg

100kg

Drive Speed(Platform Stowed)

0 - 3.2km/h

0 - 3.2km/h

0 - 3.2km/h

0 - 3.2km/h

Drive Speed(Platform Elevated)

0 - 0.8km/h

0 - 0.8km/h

0 - 0.8km/h

0 - 0.8km/h

Turning Radius

2.35m

2.35m

2.35m

2.35m

Grade-ability

25%

25%

25%

25%

Drives

Dual front wheel

Dual front wheel

Dual front wheel

Dual front wheel

Brakes

Dual rear wheel

Dual rear wheel

Dual rear wheel

Dual rear wheel

Tire size

0.305 * 0.125m

0.305 * 0.125m

0.305 * 0.125m

0.305 * 0.125m

Power:

Batteries

24V DC (4 x 6V 225Ah batteries)

24V DC (4 x 6V 225Ah batteries)

24V DC (4 x 6V 225Ah batteries)

24V DC (4 x 6V 225Ah batteries)

Motor power

3KW

3KW

3KW

3KW

Standards Compliance

 CE / ISO

 CE / ISO

 CE / ISO

 CE / ISO

Overall Net Weight

2150kg

2350kg

2550kg

2950kg





























































Advantage:

a. Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platforms.

b. Moving forward,turning around and lifting up are easily operated.

c. Short chargeable time and long dural time of the battery.

d. Easily moved, spacious working platforms, smooth working condition and high working efficiency.



Parameter:

1. Load weight: 300kg 500kg 1000kg

2. lift height: 4m 6m 8m 10m 12m 14m

3. Automatic pothole protection system

4. Slide-out battery trays
5. All motion alarm
6. Roll-out extension platform

7. Grooves on underframe for easy transportation
8. LED battery condition indicator
9. Fault diagnostic system
10. Tilt level sensor
11. Manual platform lowering valve for emergency

12. Solid non-marking tires



Factory products pictures:

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley 1

Rough Terrain Scissor Lift , Hydraulic / Electric Motor Lift Drive Mobile Scissor Lift Trolley 2



Our services:

1) We can design the Trailer Scissor Lift Scaffolding Battery Powered Scissor Lift Platform as per your requirement.

2) The most suitable battery power self propelled scissor lift will be recommended to you once we get your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 years warranty for whole machine without man-made faults

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9) Engineers are available to your country if necessary.
