Product Details:
Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO9001 SGS BV
Model Number: GTJZ10
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD9980 - 15800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 1200 units per year

Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding

Description
Application: Hydraulic Electric Lift Scaffolding Self-Propelled Elevating Work Platform Lift Drive: Hydraulic And Battery
Load Capacity: 300kg / 1000kg Lifting Height: 4m To 14m
Warranty: 24 Months Grade Ability: 25%
Min. Turning Radius: 2300mm Color: Blue, Red, Grey, Orange Or Optional
Travel Speed: 3.2km/h
High Light:

self-propelled scissor lifts

,

aerial lift scaffolding

Hydraulic Electric Lift Scaffolding Self-Propelled Elevating Work Platform with CE With 2 Years Warranty

Application:

The Hydraulic Electric Lift Scaffolding Self-Propelled Elevating Work Platform is a very flexible machine. Single man can control it easily. It takes a storage battery as the power source make low noise and no emission when working,widely use in workshop, building site hotel,airport, station,dock stadium,shopping malls, factory and so on,for aerial work such as installation, repairing and cleaning etc.



Advantage:

a. Self propelled elevating work platform does not need outrigger, one man can operate the work platform.

b. Moving forward,turning around and lifting up are easily operated.

c. Short chargeable time and long dural time of the battery.

d. Easily moved, spacious working platforms, smooth working condition and high working efficiency.



Parameter:

1. Load weight: 300kg 500kg 1000kg

2. lift height: 4m 6m 8m 10m 12m 14m

3. Automatic pothole protection system

4. Slide-out battery trays
5. All motion alarm
6. Roll-out extension platform

7. Grooves on underframe for easy transportation
8. LED battery condition indicator
9. Fault diagnostic system
10. Tilt level sensor
11. Manual platform lowering valve for emergency

12. Solid non-marking tires



Lift Shows:

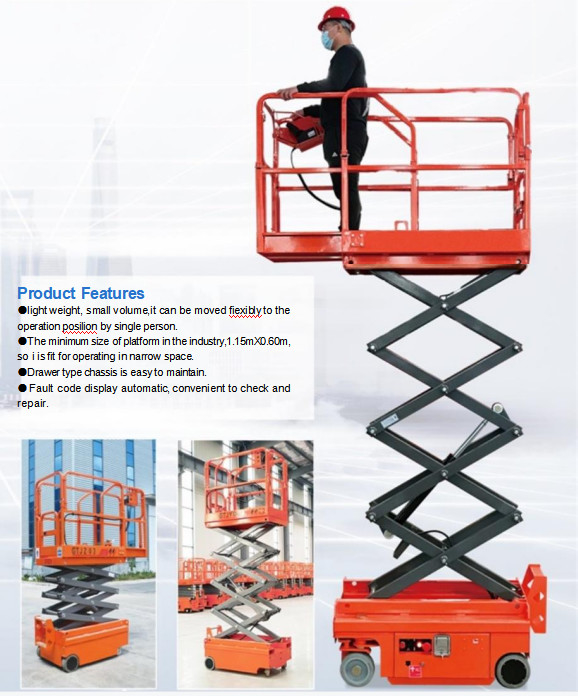

Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding 0

Product Parameters



Models
GTJZ-6
GTJZ-6A
GTJZ-8
GTJZ-8
GTJZ-10
GTJZ-12
GTJZ-14
Max. Working Height
7.8m
7.8m
9.8m
9.8m
11.8m
13.8m
15.8m
Max. Platform Height
5.8m
5.8m
7.8m
7.8m
9.8m
11.8m
13.8m
Platform Size
1.67×0.74×1.1m
2.3×1.15×1.1m
2.3×0.81×1.1m
2.3×1.15×1.1m
2.3×1.15×1.1m
2.3×1.15×1.1m
2.64×1.13×1.1m
Length-stowed
1.9m
2.45m
2.45m
2.475m
2.475m
2.475m
2.87m
Width-stowed
0.76m
1.18m
0.85m
1.18m
1.18m
1.18m
1.37m
Height-stowed
2.18m
2.24m
2.36m
2.36m
2.48m
2.60m
2.87m
Length/Load of Extended Platform
0.9m/113kg
0.9m/113kg
0.9m/113kg
0.9m/113kg
0.9m/113kg
0.9m/113kg
0.9m/113kg
Weight
1500kg
2000kg
2150kg
2100kg
2750kg
2950kg
3900kg
Max. Lift capacity
230kg
320kg
230kg
320kg
320kg
320kg
230kg
Drive speed-stowed
3.5km/h
3.5km/h
3.5km/h
3.5km/h
3.5km/h
3.5km/h
3.5km/h
Drive speed-raised
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
0.8km/h
Battery
24V/200Ah
24V/200Ah
24V/200Ah
24V/200Ah
24V/200Ah
24V/200Ah
24V/270Ah
Charger
24V/30A
24V/30A
24V/30A
24V/30A
24V/30A
24V/30A
24V/30


Factory pictures:



Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding 1

Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding 2Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding 3Self Propelled Elevating Work Platforms , CE Hydraulic Electric Aerial Lift Scaffolding 4

Our services:

1) We can design the Hydraulic Electric Lift Scaffolding Self-Propelled Elevating Work Platform as per your requirement.

2) The most suitable Hydraulic Electric Lift Scaffolding Self-Propelled Elevating Work Platform will be recommended to you once we get your requirement.

3) Shipment can be arranged from our port to your destination port.

4) Operation video can be sent to you if needed.

5) User-friendly English manual for machine installation using and maintenance.

6) 2 years warranty for whole machine without man-made faults

7) We will send you parts for free if there are any non-human factors faults during warranty time.

8) Supply 24-hours technical assistance by email, telephone or other communication online.

9) Engineers are available to your country if necessary.
