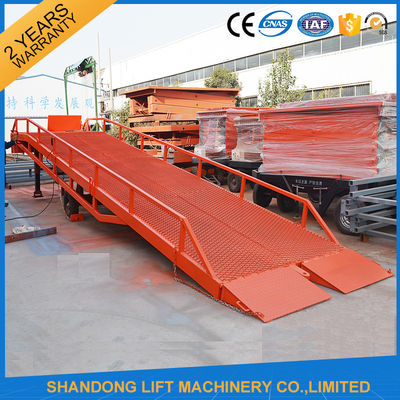

    Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE, ISO9001, SGS, SONCAP
    Model Number: YZCQ6-0.9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: US3980- USD7800 / UNIT
    Packaging Details: Iron case or nude
    Delivery Time: 5-10 work days
    Supply Ability: 4600units per year
    Get Best Price Contact Now

    Detail Information

    Usage: Heavy Load Mobile Yard Ramp Container Loading And Unloading Ramps Rated Loading Capacity: 6000 - 15000kgs
    Work Platform: Anti-slip Corrugated Steel Grate Max Working Grade: 13°
    Power: 0.75kw - 2.2kw Warranty: 24 Months
    Lifting Height: 0.9m - 1.8m Color: Blue, Green, Yellow, Grey Or As Your Request
    High Light:

    container unloading ramps

    ,

    adjustable loading dock ramp

    Product Description

    Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity

    Heavy Load Mobile Yard Ramp Container Loading and unloading Ramps

    With CE With 2 Years Warranty

    Instruction:

    1. The container loading and unloading ramp is suit for material handling, warehouse, wharf, logistics center working place, loading and unloading goods from container or truck.

    2. The container loading ramp can be operated by single person easily, in this way saving people work and promoting work efficiency.

    3. Manual power or electricity power is for your choice.

    4. The regular model of this ramp is width-2.08m, length-11m, adjusting height range-0.9m to 1.8m. And it also can be designed and produced according to customer’ requirement.



    Parameters:

    Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 0



    The models list:

    Model No.

    Capacity

    (kg)

    Length

    (mm)

    Width

    (mm)

    Min. Height

    (mm)

    Max. height

    (mm)

    Lift system

    YZCQ6-0.9

    6000

    10500

    2080

    900

    1800

    hand pump or electrical

    YZCQ8-0.9

    8000

    10500

    2080

    900

    1800

    hand pump or electrical

    YZCQ10-0.9

    10000

    10500

    2080

    900

    1800

    hand pump or electrical

    YZCQ12-0.9

    12000

    10500

    2080

    900

    1800

    hand pump or electrical

    YZCQ15-0.9

    15000

    10500

    2080

    900

    1800

    hand pump or electrical



    Advantage:

    1) Competitive price

    2) Reliable quality

    3) Good service, keep innovations

    4) Easy operation with hand pump

    5) Adjustable safety chain

    6) High strength meshwork steel

    7) Heavy-duty formed steel side girders

    8) Collocate ding brake cushion

    9) With strong landing leg for supporting load and unload



    Factory Products:

    Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 1Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 2

    Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 3Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 4



    The customers visiting:Heavy Duty Container Loading Ramps / Unloading Ramps with 6T 10T 15T Loading Capacity 5



    Our services:

    1) We can design Heavy Load Mobile Yard Ramp Container Loading and unloading Ramps as per your requirement.

    2) The most suitable container loading ramp will be recommended to you once we get your requirement.
    3) Shipment can be arranged from our port to your destination port.
    4) Operation video can be sent to you if needed.
    5) User-friendly English manual for machine installation using and maintenance.
    6) 2 years warranty for whole machine without man-made faults.
    7) We will send you parts for free if there are any non-human factors faults during warranty time.
    8) Supply 24-hours technical assistance by email, telephone or other communication online.
    9) Engineers are available to your country if necessary.
