Product Details:
|
| Type: | Goods Cargo Elevator | Applitaion: | Warehouses Factories Highways And Steet |
|---|---|---|---|
| Lifting Capacity: | 800kg | Lifting Height(mm): | 8000mm |
| Platform Size: | 3000mm X 2000mm | Installation: | In A Pit |
| Pit Depth: | 200mm | Hydro-cylinder: | High Precision Wear-resisting Hydro Cylinders |
| Operation: | Button Press | Lift Speed: | 3-6m/min |
| Warranty: | 24 Months | Lift Mechanism: | Lift Chain |
| Control Mode: | On The Platform And On The Ground | ||
| High Light: | warehouse elevator lift,freight lift elevator |
||
Vertical Car Hydraulic Elevator Lift 4 post Vertical Hydraulic Car Lift Elevator with CE:
Product Description:
The product is designed and made in a strong structure, which make the lift larger capacity, more stable
performance, better safety and easier operation, which is the idealest substitution of elevator for transfer
cargoes. According to different surroundings, customers can select different collocation, which make
the performance better
There are devices for avoiding falling down, mutual lock between upper and nether gates, there is
control button in every layer and the platform, to control the lift in multi-point control.
Specifications:
1. Smooth Operation Positioning fast,
2. After rigorous testing
3. Improve production efficiency
4. Convenient installation
Our products can be cuetomized:
| Specification | Vertical Travel(mm) | Self-height(mm) | Capacity(kg) | Platform size(LxW,mm) | Power(Kw) |
| SJG0.3-4.5(2 layers) | 4500 | 150 | 300 | 1000x800 | 1.5 |
| SJG0.5-4.5(2 layers) | 4500 | 150 | 500 | 1500x1000 | 1.5 |
| SJG1-4.5(2 layers) | 4500 | 150 | 1000 | 1500x1500 | 2.2 |
| SJG2-4.5(layers) | 4500 | 150 | 2000 | 2000x1000 | 2.2 |
| SJG3-4.5(2 layers) | 4500 | 160 | 3000 | 2000x1200 | 3.0 |
| SJG0.3-7.5(3 layers) | 7500 | 150 | 500 | 1000x1000 | 1.5 |
| SJG0.5-7.5(3 layers) | 7500 | 150 | 500 | 1200x1200 | 1.5 |
| SJG1-7.5(3 layers) | 7500 | 150 | 1000 | 1800x1400 | 2.2 |
| SJG2-7.5(3 layers) | 7500 | 150 | 2000 | 2000x1500 | 2.2 |
| SJG3-7.5(3 layers) | 7500 | 160 | 3000 | 2000x1600 | 3.0 |
| SJG1-10.5(4 layers) | 10500 | 150 | 1000 | 1800x1400 | 2.2 |
| SJG1-14(5 layers) | 14000 | 150 | 1000 | 1800x1500 | 2.2 |
| SJG3-4.5(Special for car lifting) | 4500 | 160 | 3000 | 5000x3000 | 4.0 |
safety and stability:
Besides the safe devices on normal elevator, there are still:
1) Overfall valve: To avoid over loading when it is moving up.
2) Emergency manual valve: In case power off, the lift car may drop to the nearest layer to open the door.
3) Manual pump: When failure occurs, operator may use manual pump to give high pressure oil to get to
the nearest layer.
4) Pipe broken protection valve: When lifting car drops fast as oil pipe broken, use the valve can make
the lift stop dropping.
5) Oil temperature protection: When temperature of oil is overheat, there is signal given out, stop the lift
when temperature get normal, start again.

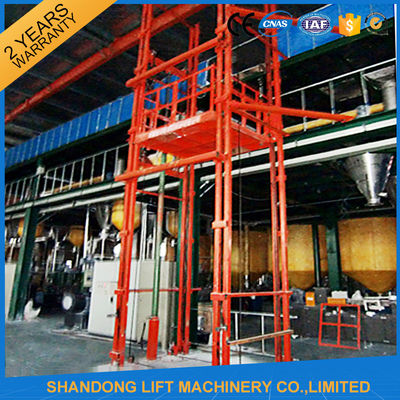

Installation sites:
Parts showing:
FAQ:
1. How about the delivery time?
Within 15 working days after we receive the order
2. What kind of payments do you support?
T/T, L/C, Western Union,Paypal, other kinds, pls contact with us.
3. What is the MOQ?
Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.
4. Can you produce according to customer's requirements?
Yes, of course, we are professional manufacturer, need tell us the lifting height, load capacity and
platform size, OEM we are also welcome.
5. Can you tell us your main customers?
That's our customer's privacy, we should protect their information, when you need, we ask them first,
if agree, we can tell u.At the same time, pls rest assured that your information is also safe here.
Our services:
1) We can design the customerized outside elevator as per your requirement.
2) The most suitable outside elevator will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 years warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday.
Engineers are available to your country if necessary.
