    High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage

    Product Details:

    Place of Origin: China
    Brand Name: SDLIFT
    Certification: CE, ISO9001, SGS
    Model Number: SJG3-3.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1unit
    Price: US5980- USD7800 / UNIT
    Packaging Details: Iron case or nude
    Delivery Time: 5-20 work days
    Supply Ability: 3600units per year
    Get Best Price Contact Now

    Detail Information

    Application: Portable Hydraulic Scissor Car Lift For Garage Warranty: 24 Months
    Load Capacity: 3000kg Lift Height: 3500mm
    Platform Size: 5300mm(L) * 2700mm(W) Safety Device: Explosion Proof Lock Valve
    Material: High Strength Mn Steel Motor: Customer Required Brand Or Chinese Famous Brand
    Lift Mechanism: Hydraulic Cylinders Power Supply: 220V/240V/380V/415V
    Control: Control Box And Remote Controller
    High Light:

    vehicle scissor lift

    ,

    automotive scissor lift

    Product Description

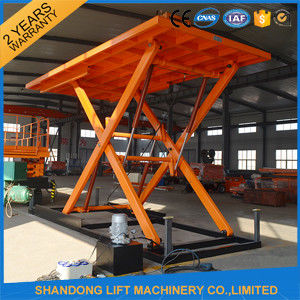

    High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage

     Portable Hydraulic Scissor Car Lift with CE

    With 2 Years Warranty



    Application:

    - The portable hydraulic scissor car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.

    - Operation is easy. There are 2 sets control system installed on the hydraulic scissor car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.



    Factory pictures:

    High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage  0 High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage  1



    High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage  2 High Pressure Oil Pump Hydraulic Portable Scissor Lift Table for Home Garage  3



    The frequent models we supplied for our clients:



    MODEL

    LOAD

    CAPACITY

    PLATFORM

    SIZE

    LIFT HEIGHT

    PIT DEPTH

    POWER

    SJG2.5-3

    2.5T

    5.2m x 2.6m

    3m

    750mm

    220V, 240V, 380V or 400V

    SJG2-6.5

    2T

    5.2m x 2.8m

    6.5m

    800mm

    220V, 240V, 380V or 400V

    SJG2.5-3.5

    2.5T

    5.2m x 2.6m

    3.5m

    800mm

    220V, 240V, 380V or 400V

    SJG2.5-5

    2.5T

    5.6m x 3m

    5m

    800mm

    220V, 240V, 380V or 400V

    SJG3-2.5

    3T

    5m x 2.3m

    2.5m

    750mm

    220V, 240V, 380V or 400V

    SJG3-3

    3T

    5.2m x 2.6m

    3m

    800mm

    220V, 240V, 380V or 400V

    SJG3-3.5

    3T

    5.6m x 2.7m

    3.5m

    800mm

    220V, 240V, 380V or 400V

    SJG5-10

    5T

    4.5m x 2.5m

    10m

    1150mm

    220V, 240V, 380V or 400V

    SJG8-2.5

    8T

    6.5m x 4.5m

    2.5m

    850mm

    220V, 240V, 380V or 400V

    SJG12-3

    12T

    5.5m x 2.8m

    3m

    950mm

    220V, 240V, 380V or 400V

    SJG15-4.5

    15T

    8m x 2.2m

    4.5m

    1150mm

    220V, 240V, 380V or 400V

    SJG20-5

    20T

    6m x 3m

    5m

    1200mm

    220V, 240V, 380V or 400V

     The hydraulic scissor car lift can be customized as your detailed size.



    Parts showing:



    double deck car lift(blue).png



    Configuration:

    1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron

    2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.

    3) Hydraulic system: 380V/5.5Kw

    4) High Precision Hydraulic Cylinder: 110*4sets

    5) Piston Rod: 70*4 hard chromium plating surface.

    6) High-pressure oil pump

    7) Hydraulic oil: summer 46#, winter 32#

    8) Controller: 1 control box below, 1 control panel above platform



    Safety:

    1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.

    2) The safety rails to guarantee safety of the cars above the platform.

    3) The limit switch system helps hydraulic scissor car lift to stop at accurate position.

    4) Electricity leakage protection device is equipped on, all electric components are CE certified.

    5) All the hydraulic scissor car lift are passed 1.2 times loading test before leaving factory.



    The workshops:-.jpg



    The customers visiting:2.jpg



    The Packing & Loading container:
    .jpg



    The Certificates:




    Our services:

    1) We can design the customerized hydraulic scissor car lift as per your requirement.

    2) The most suitable hydraulic scissor car lift will be recommended to you once we got your requirement.

    3) Shipment can be arranged from our port to your destination port.

    4) Operation video can be sent to you if needed.

    5) User-friendly English manual for machine installation using and maintenance.

    6) 2 years warranty for whole machine without man-made faults.

    7) We will send you parts for free if there are any non-human factors faults during warranty time.
    8) Supply 24-hours technical assistance by email, telephone or other communication online.
